SC060M-008-ULH-SKT-C - Datasheet
MBA
Category Information
Screws - Ultra Low Head - Socket - SteelSteel Socket Ultra Low Head Screws. Metric Steel with Phosphate Treatment
- Note. Hex key size may. The size listed is the usual and minimum size.
Product Data

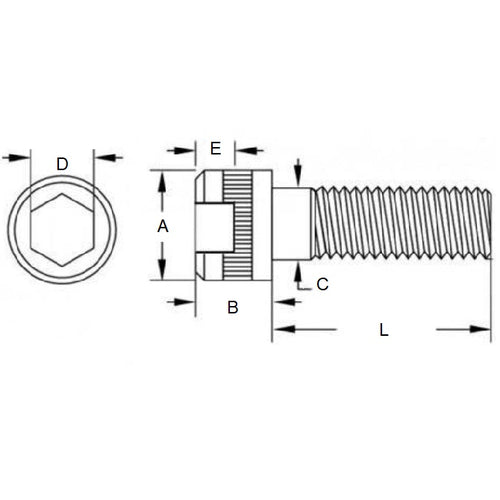

- Thread Size (C) : M6 (6x1mm)
- Thread Length (L)
8
mm
+ 0.00 / - 0.10
(Equiv. 0.315 in.) - Material Alloy Steel - Phosphate Treatment
- Max Head Dia. 10.0 mm
- Max Head Height 1.5 mm
- Usual Hex Key (D) 3.00 mm
- Type Ultra Low Head Socket
- Pitch 1.00 mm
- Threads Per Inch 25.40 TPI
- Material Steel - Phosphate Treatment
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi C-CBSS6-8
- CCBSS68
