IN-RIV-060M-042-R - Datasheet
MBA
Category Information

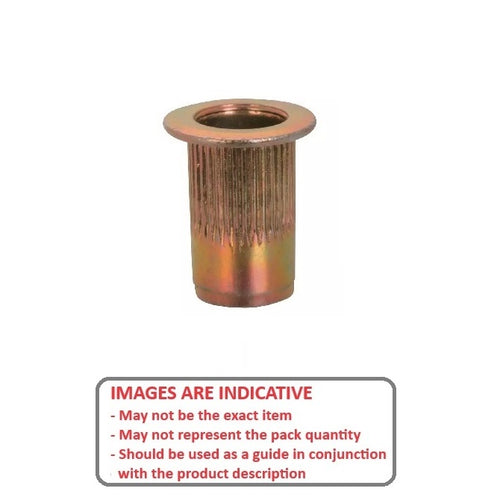

Inserts - Rivet Nuts - Klik - RibbedRibbed Klik Rivet Nuts Inserts. Individual Inserts for use with the Klik Thread Setter Tool
- One-piece, internally threaded fastener that creates a permanent, reusable thread in a material, from only one side.
- Installed using a special tool that grips the insert and pulls a mandrel, which causes the nut's body to deform and grip the hole. This allows a bolt to be threaded into the insert to join components together.
- Also known as a nutsert or rivnut.
- These blind threaded inserts offer strong torque and pull out characteristics. Especially effective in sheet metal and other thin material.
- Insert is placed into the hole in the parent material and crimped up with the installation tool.
- Installs from one side - no tapping required. Installs almost flush eliminating the need for countersinking.
- Made from plated steel.
Product Data
- Internal Thread : M6 (6x1mm)
- Drill Hole Size
10
mm
(Equiv. 0.394 in.) - Grip Range
0.70 - 4.20
mm

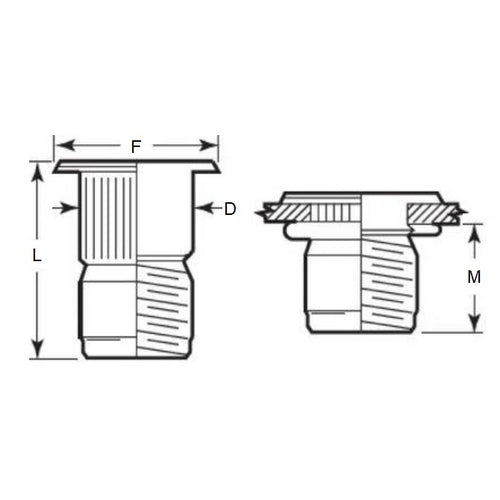

(Equiv. 0.028 in.) - Body Diameter (D) 9.9 mm
- Flange Diameter (F) 12.7 mm
- L 14.900 mm
- M 9.000 mm
- 0.70 - 4.20
Product Compliance and Data
Additional Resources
Cross References
- INRIV060042R
