PLBT-060M-120-CZ-030 - Datasheet
MBA
Category Information

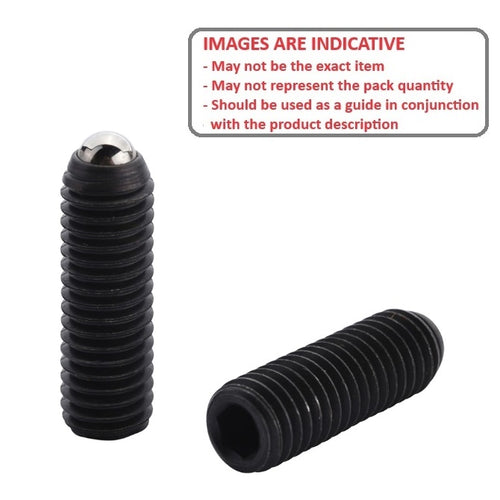

Plungers - Ball Threaded - Steel Body - Stainless BallStainless Ball Steel Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : M6 (6x1mm)
- Body Length (L)
12.0
mm
(Equiv. 0.472 in.) - Initial Pressure (F1) 5.00 N
- Final Pressure (F2) 30.00 N
- Ball Diameter (D1) 3.50 mm
- Ball Height (H) 1.20 mm
- 304 Stainless
- Body Material Alloy Steel
- Finish Zinc Plated
- Drive 1.2mm Hex
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-BPM6-10P
- CBPM610P
