PLBT-060M-120-CS-005 - Datasheet

MBA

Category Information

Plungers - Ball Threaded - Steel Body - Stainless Ball

Stainless Ball Steel Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

    Product Data

    • Thread Size (D) : M6 (6x1mm)
    • Body Length (L) 12.0 mm
      (Equiv. 0.472 in.)
    • Initial Pressure (F1) 3.00 N
    • Final Pressure (F2) 5.00 N
    • Ball Diameter (D1) 3.50 mm
    • Ball Height (H) 1.20 mm
    • 304 Stainless
    • Body Material Alloy Steel
    • Drive 3.0mm Hex
    • Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

    Cross References

    • Misumi C-BPJF6-10P
    • CBPJF610P
    View full details

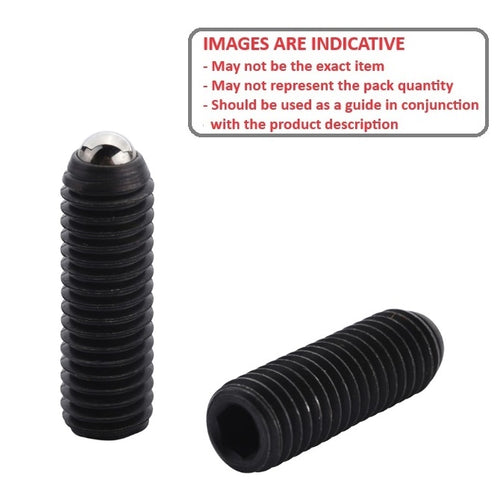

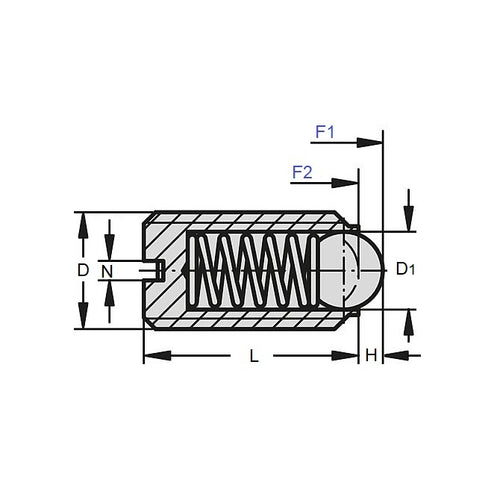

    PLBT-060M-120-CS-005DiagramPLBT-060M-120-CS-005Image
