SS050M-0098-S4-NT - Datasheet
MBA
Category Information

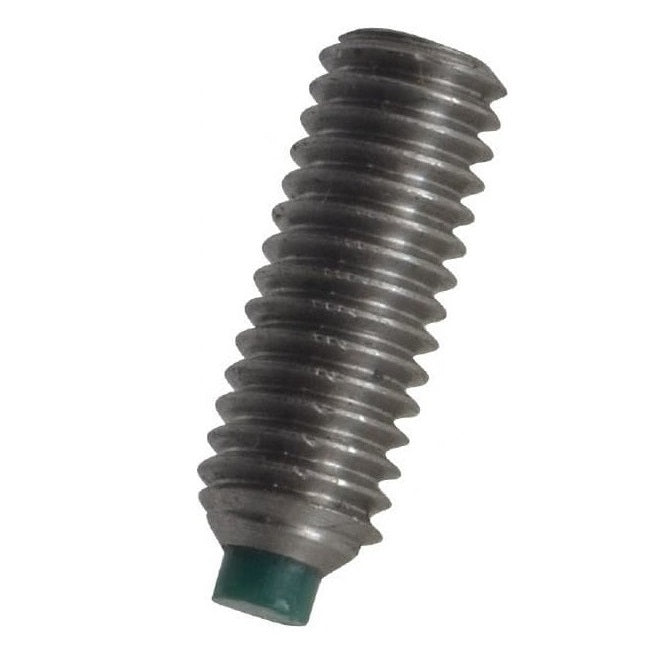

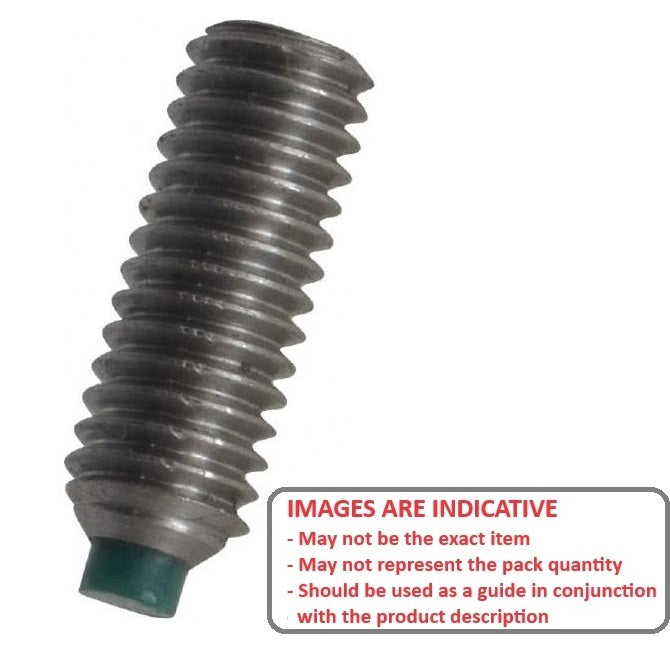

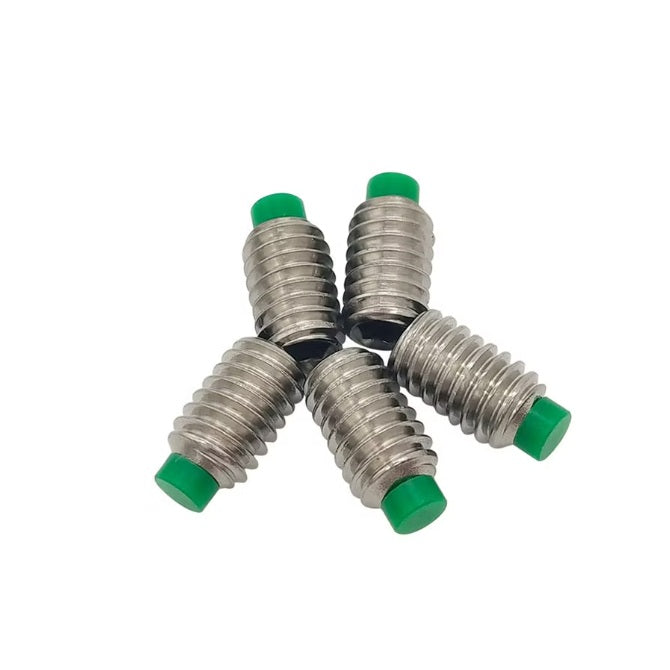

Socket Set Screws - Nylon Tipped - 304 Stainless Steel304 Stainless Steel Nylon Tipped Socket Set Screws. Nylon tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.
- Socket driven grub screws that uses a non-metallic tip made of Nylon to prevent damage to the shaft it secures.
- Ideal for joining a pulley, gear, or collar to a shaft without scratching or scarring, and the nylon tip can also provide a self-locking effect by increasing friction and absorbing vibration, preventing loosening.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : M5 (5x0.8mm)
- Thread Length (L)
9.8
mm
(Equiv. 0.386 in.) - Type Nylon Tipped
- Overall Length (L + L1) 11.0 mm
- Tip Diameter (d) 2.4 mm
- Tip Length (L1) 1.2
- Hex Key Size 2.50
- Pitch 0.800 mm
- Threads Per Inch 31.75 TPI
- Drive Type Socket
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- A 9X93MSO050110
- A9X93MSO050110
