Miniature Bearings Australia
SS050M-0086-S4-RB - Datasheet
MBA
Category Information

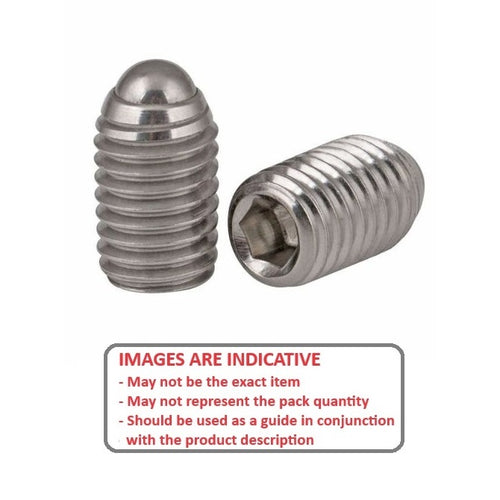

Socket Set Screws - Rolling Ball Tip - Stainless SteelStainless Steel Rolling Ball Tip Socket Set Screws. Rolling ball tip for locating into a hole
- Rolling ball set screws are not designed to bear heavy loads.
- Used to lightly fasten fragile work pieces.
- We would recommend testing if you plan to use them in a load bearing application
- Various ball materials include Alumina, Polyacetal or 440C Stainless Steel
Product Data
- Thread Size : M5 (5x0.8mm)
- Thread Length (L)
8.0
mm
(Equiv. 0.315 in.) - Type Rolling Ball Tip
- Overall Length (L) 9.0 mm
- Ball Diameter (D) 3.0 mm
- Hex Key Size 2.5
- Body Material 304 Stainless Steel (A2, 18-8)
- Ball Material 440C Stainless HRC 50-55
- Pitch 0.8 mm
- Threads Per Inch 31.75 TPI
- Material 304 Stainless Steel (A2, 18-8) with 440C Stainless HRC 50-55 tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- GN605M58AN
- GN-605-M5-8-AN
- S705YBM0509
