NT050M-BL-CZ - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

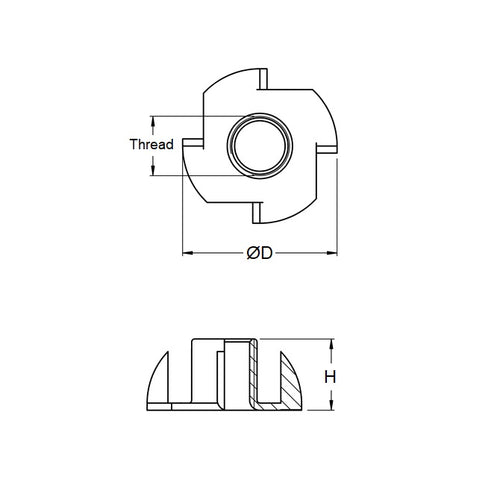

• Thread Size : M5 (5x0.8mm)
• Flange Diameter 19 mm
  (Equiv. 0.748 in.)
• Barrel Height 9.1 mm
  (Equiv. 0.358 in.)

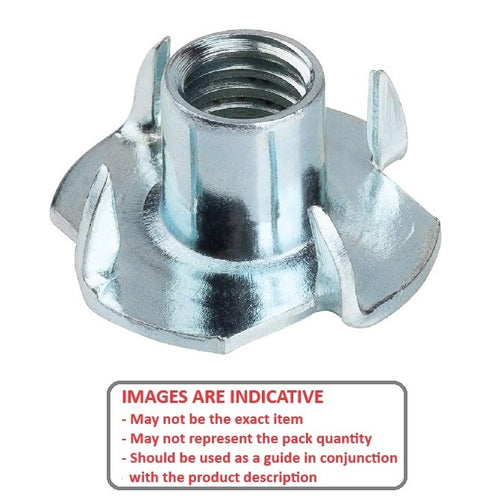

• Type Tee Nut
• Pitch 0.800 mm
• Threads Per Inch 31.75 TPI
• Material Steel Zinc Plated

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 98965A210
• MicroFast BNM5
