SK050M-012-PH-TC2 - Datasheet
MBA
Category Information

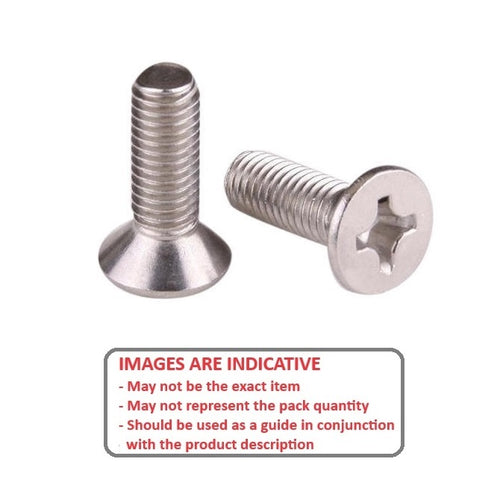

Screws - Countersunk - Phillips - Titanium CP GradeTitanium CP Grade Phillips Countersunk Screws. Flat Head Countersunk. Metric only. CP2 Commercially Pure Titanium Grade 2. Tensile Strength 35.2 kgf/mm2. Yield Strength 28.2 kgf/mm2. Elongation 20 Percent.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts. Commercially pure for general industrial corrosion applications. UNS R50400.
- Widely used in power generation, chemical processing, aerospace and medical applications.
- Composition Percentage: Al 0, V 0, N 0.03, C 0.08, H 0.015, Fe 0.3, O 0.25, Ti Balance
Product Data
- Thread Size (C) : M5 (5x0.8mm)
- Overall Length (L)
12
mm
(Equiv. 0.472 in.) - Material Titanium CP Grade 2
- Max Head Diameter (A) 9.20 mm
- Max Head Height 2.8 mm
- Type Flat Countersunk / Philips
- Pitch 0.800 mm
- Threads Per Inch 31.75 TPI
- Material Titanium - CP2 Commercially Pure
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 91307A013
