SK050M-012-O-PH-S4 - Datasheet
Brighton Best
Category Information

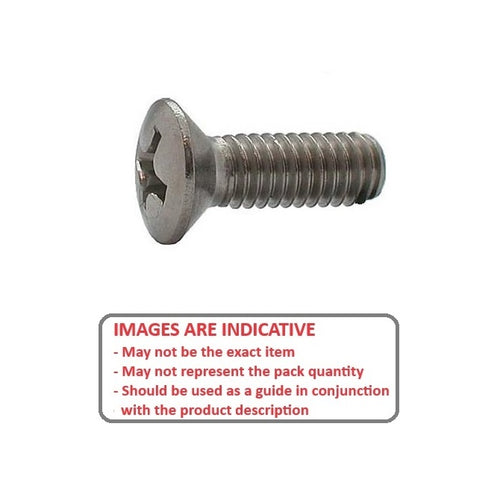

Screws - Countersunk - Oval Top - Phillips 304 StainlessPhillips 304 Stainless Oval Top Countersunk Screws. Flat Head Countersunk. Metric only.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data

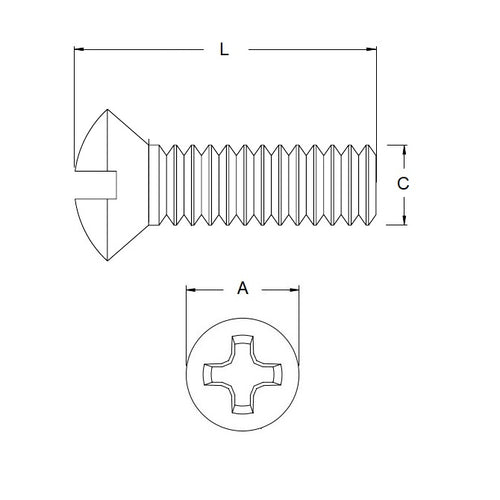

- Thread Size (C) : M5 (5x0.8mm)
- Overall Length (L)
12
mm
(Equiv. 0.472 in.) - Material 304 Stainless
- Max Head Diameter (A) 9.20 mm
- Max Head Height 5 mm
- Type Oval Countersunk / Philips
- Pitch 0.800 mm
- Threads Per Inch 31.75 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90258A249
