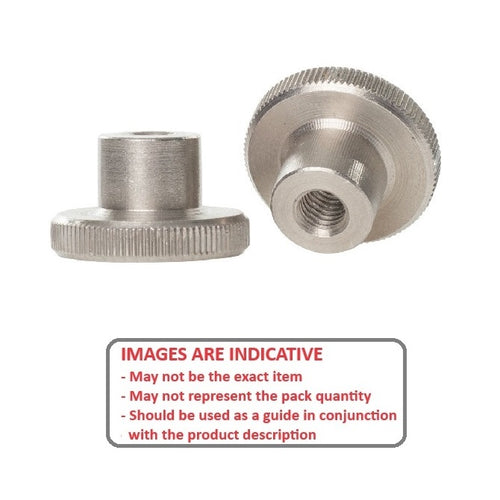

NT050M-TH2007-S3 - Datasheet

MBA

Product Data

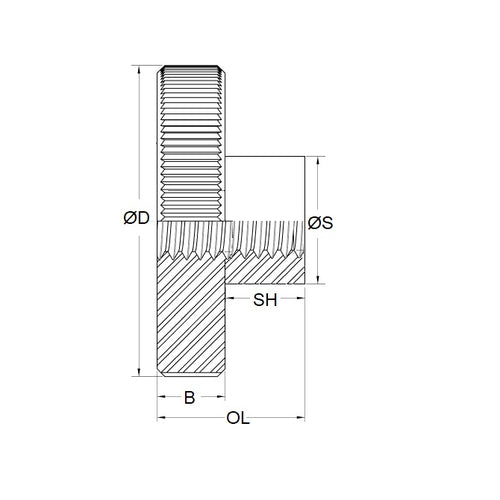

• Thread Size : M5 (5x0.8mm)
• Overall Length 11.5 mm
  (Equiv. 0.453 in.)
• Head Width (B) 4.00 mm
  (Equiv. 0.157 in.)
• Head Diameter 20.00 mm
• Shoulder Diameter 10.00 mm
• Shoulder Height 7.50 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• 90368A250
• PTN510
• PTN-510
