SK050M-010-PH-S6 - Datasheet
Brighton Best
Category Information

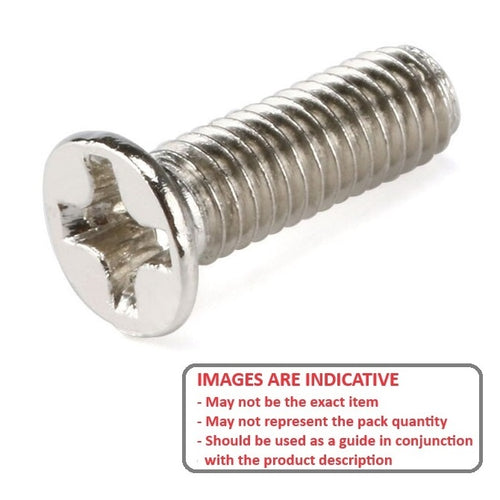

Screws - Countersunk - Phillips - 316 Stainless316 Stainless Phillips Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : M5 (5x0.8mm)
- Overall Length (L)
10
mm
(Equiv. 0.394 in.) - Material 316 Stainless
- Max Head Diameter (A) 9.20 mm
- Max Head Height 2.5 mm
- Type Countersunk / Philips
- Pitch 0.800 mm
- Threads Per Inch 31.75 TPI
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 680053
- 91801A254
