SS050M-0100-S3-SOL - Datasheet
MBA
Category Information

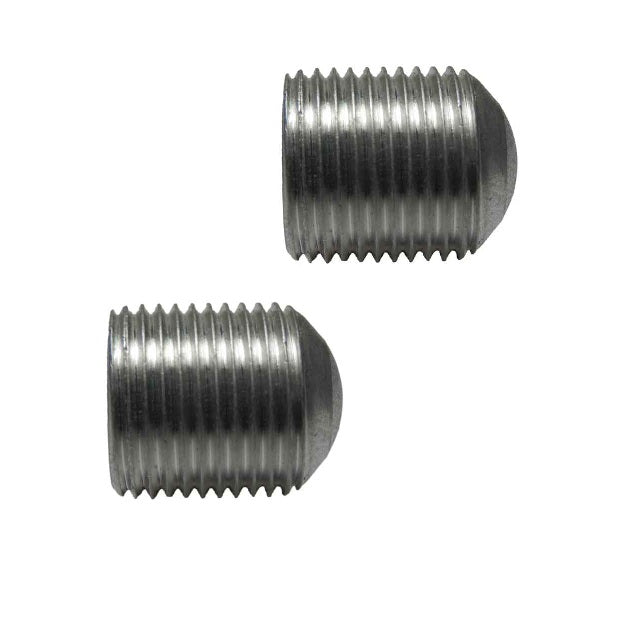

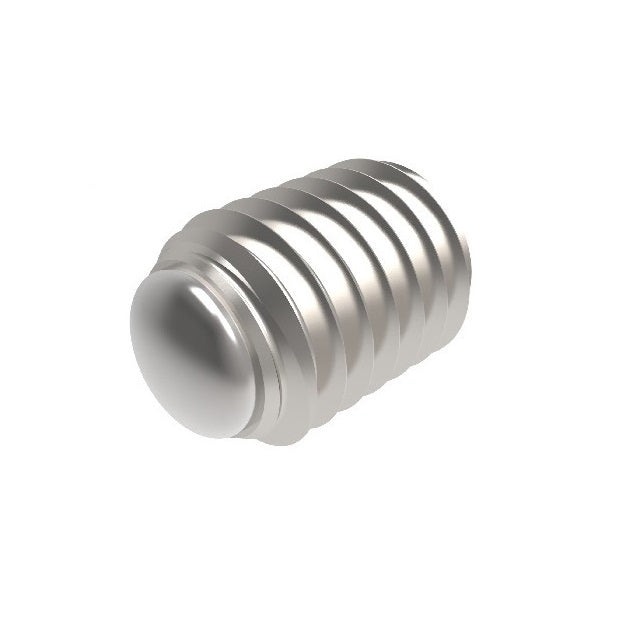

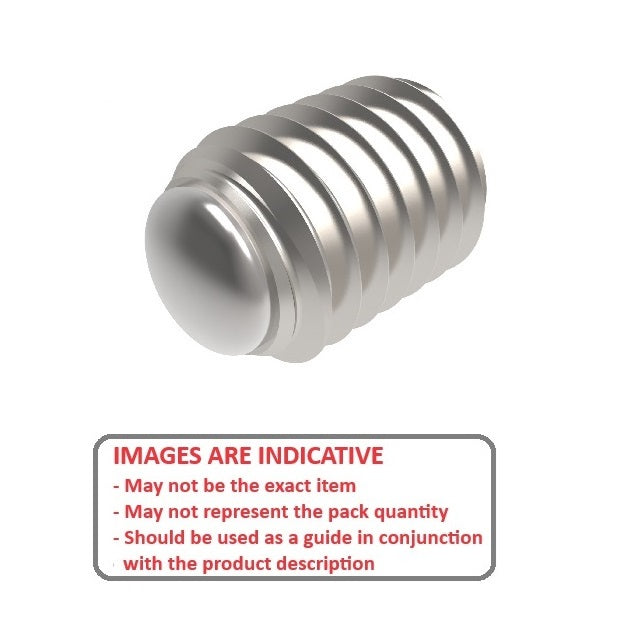

Socket Set Screws - Solder TippedSolder Tipped Socket Set Screws. Solder tipped grub screws. Allow fine adjustment and spreads over the contacting surface so as not to mark or deform it.
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

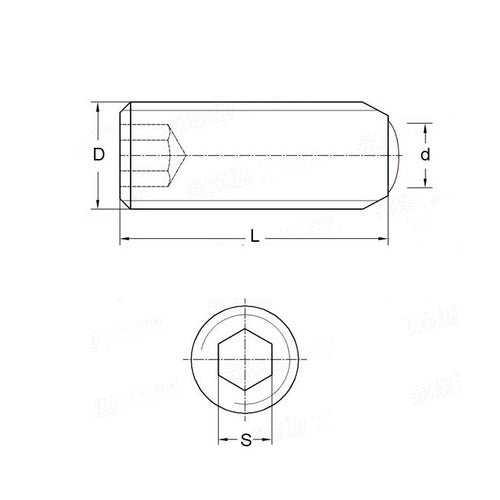

- Thread Size : M5 (5x0.8mm)
- Thread Length (L)
10.0
mm
(Equiv. 0.394 in.) - Type Solder Tipped
- Overall Length (L + L1) 10.0 - 11.0 mm
- 2.50
- Pitch 0.800 mm
- Threads Per Inch 31.75 TPI
- Material Stainless Steel 18-8 (Similar to A2, 303, 304)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- STM510
- STM5-10
