SC520M-090-C-SK-BO - Datasheet
MBA
Category Information

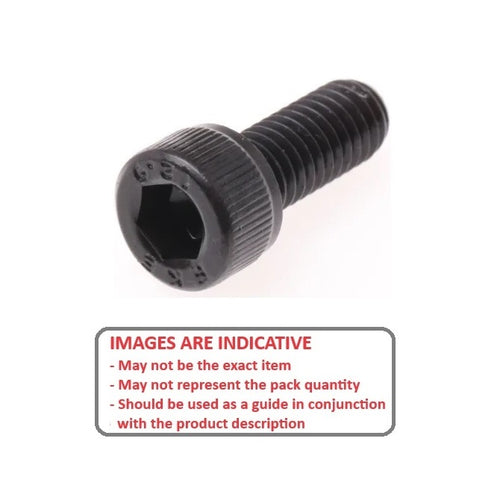

Screws - Socket Cap - Alloy Steel - Black OxideBlack Oxide Alloy Steel Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.

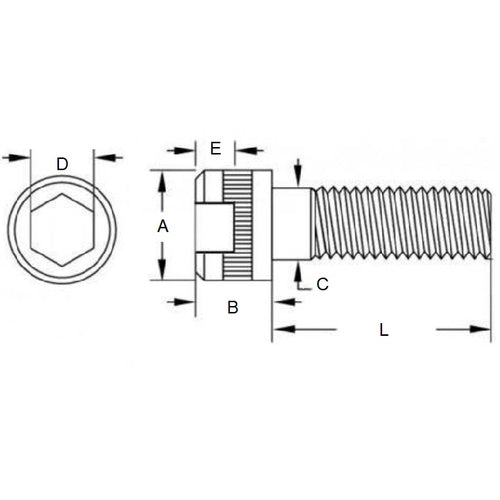

Product Data
- Thread Size (C) : M52 (52x5mm)
- Thread Length (L)
90
mm
(Equiv. 3.543 in.) - Material Black Oxide Carbon Steel 12.9
- Head Length (B Max.) 52 mm
- Head Diameter (A Max.) 80 mm
- Shank Diameter (C) 51.00 - 52.00 mm
- Pitch 5.00 mm
- Threads Per Inch 5.080 TPI
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi CSH-ST-M52-90
- CSHSTM5290
