SHX-TP-0500-08-100-MZ - Datasheet

MBA

Product Data

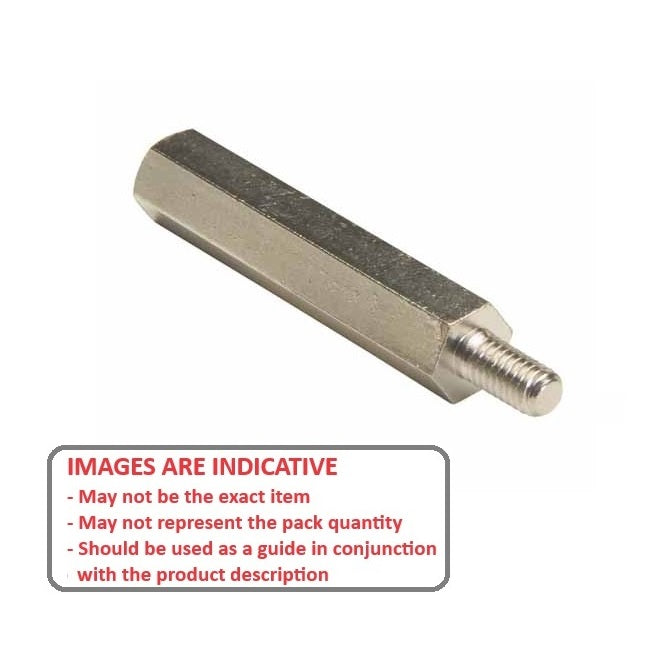

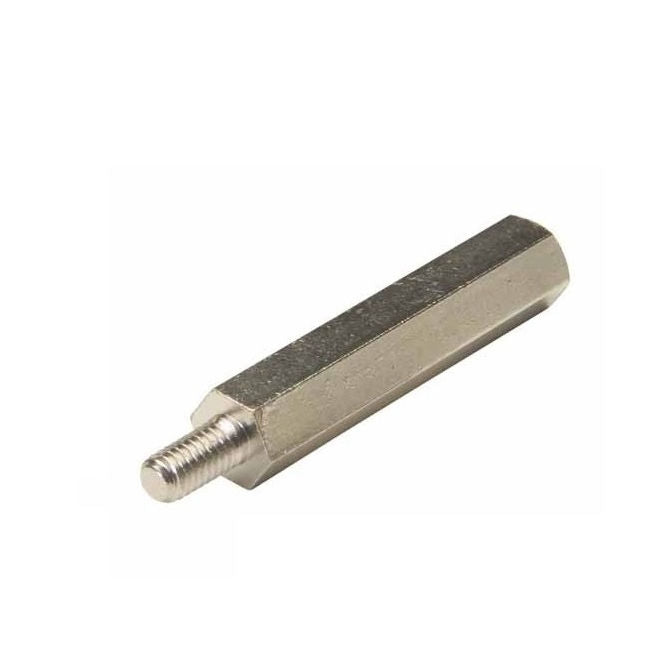

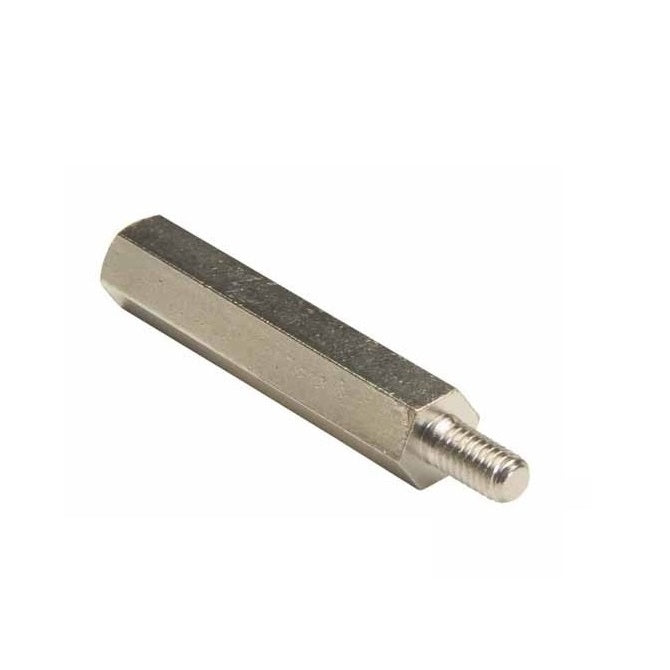

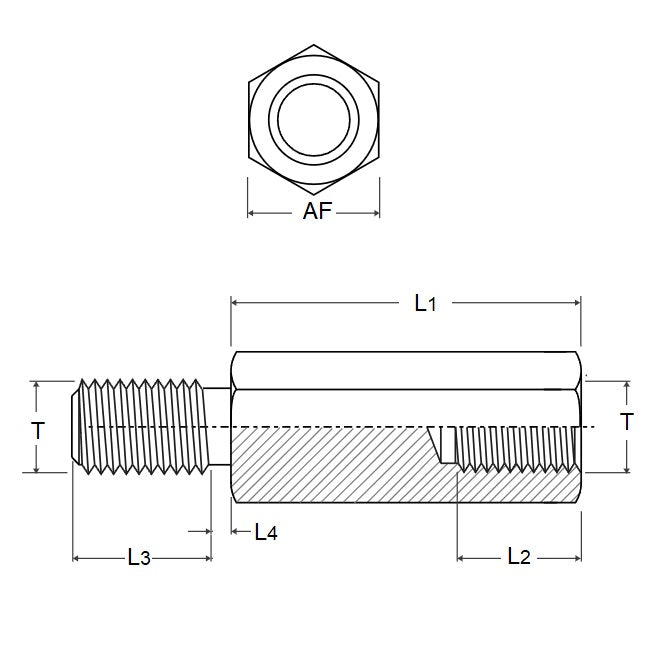

• Thread Size : M5 (5x0.8mm)
• Stud Length (L3) 7.500 mm
  (Equiv. 0.295 in.)
• Base Length (L1) 100 mm
  (Equiv. 3.937 in.)
• Across Flats (A/F) 8.00 mm
• Bore Thread Length (L2) 10.00 mm
• Finish Nickel Electroplating
• Material Steel - Mild

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• Misumi C-PLSBWRK8-100
• CPLSBWRK8100
