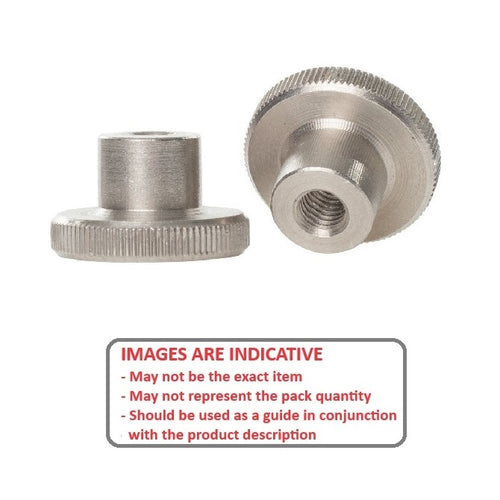

NT050M-TH12-S3 - Datasheet
MBA
Category Information
Nuts - Thumb - BasicBasic Thumb Nuts. This is the main category in this series
Product Data

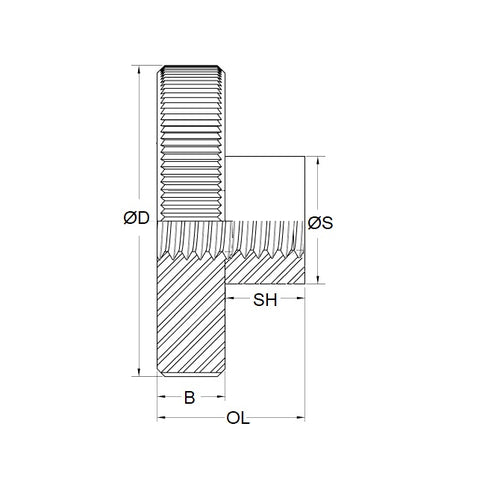

- Thread Size : M5 (5x0.8mm)
- Overall Length
11.5
mm
(Equiv. 0.453 in.) - Head Width (B)
11.50
mm
(Equiv. 0.453 in.) - Head Diameter 20.00 mm
- Shoulder Diameter N/A mm
- Shoulder Height N/A mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-NKMS5
- CNKMS5
