PLST-050M-180-CLK-020 - Datasheet

MBA

Category Information

Plungers - Spring - No Handle - Steel - Threadlock

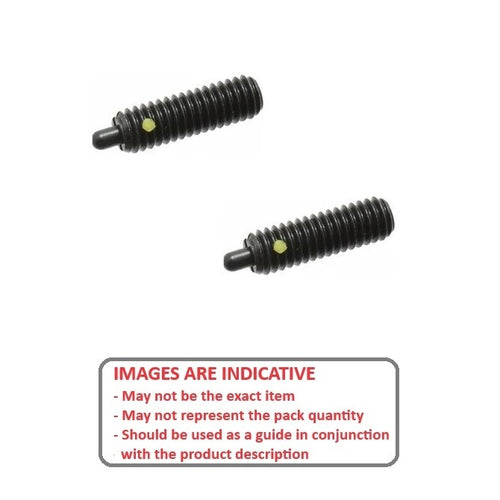

Threadlock Steel No Handle Spring Plungers. With Long-Lok thread locking compound to prevent loosening

  • A compact mechanical component with a spring-loaded ball or pin inside a housing that applies consistent, predictable force. Internal spring compresses when pressure is applied to the ball or pin, allowing it to settle into designated positions or recess.
  • Provides a reliable holding or locating mechanism in various industrial applications where precise alignment or securing of parts is needed.
  • Also known as ball plungers or spring-loaded pins.
  • Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

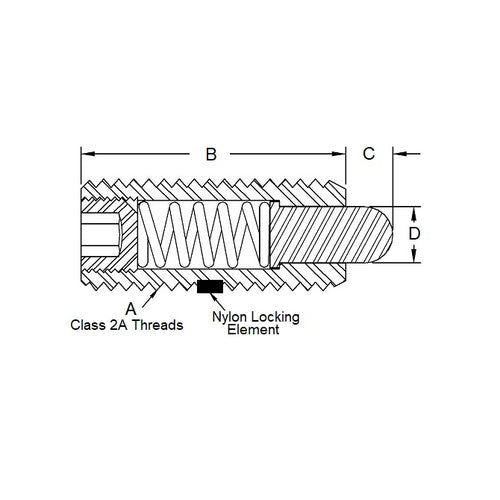

  • Thread Size (D) : M5 (5x0.8mm) x 18
  • Thread Length (B) 12.0 mm
    (Equiv. 0.472 in.)
  • Initial Pressure (F1) 6.00 N
  • Final Pressure (F2) 20.00 N
  • Tip Diameter (D1) 2.40 mm
  • Tip Length (C) 2.40 mm
  • Body Length (L) 18.0 mm
  • Drive 1.5mm Hex
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • PLST050180CLK020
