PLBT-050M-120-CZ-020 - Datasheet
MBA
Category Information

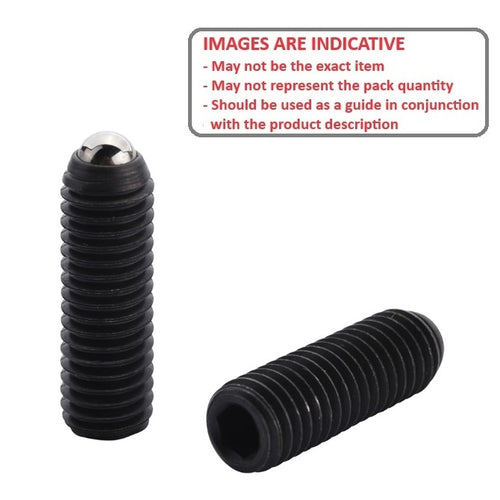

Plungers - Ball Threaded - Steel Body - Stainless BallStainless Ball Steel Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

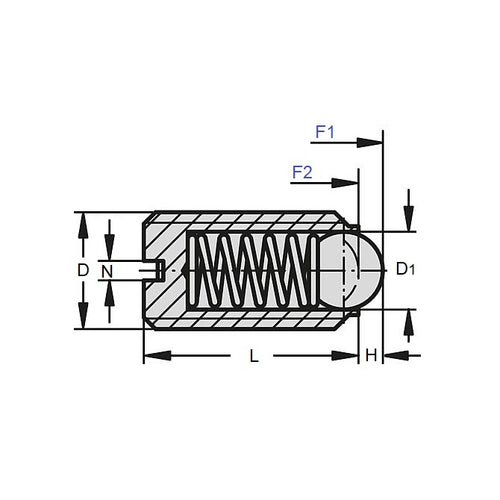

- Thread Size (D) : M5 (5x0.8mm)
- Body Length (L)
12.0
mm
(Equiv. 0.472 in.) - Initial Pressure (F1) 4.00 N
- Final Pressure (F2) 20.00 N
- Ball Diameter (D1) 3.00 mm
- Ball Height (H) 1.00 mm
- 304 Stainless
- Body Material Alloy Steel
- Finish Zinc Plated
- Drive 1.0mm Hex
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-BPM5-20P
- CBPM520P
