PLBT-050M-120-CS-020 - Datasheet

MBA

Category Information

Plungers - Ball Threaded - Steel Body - Stainless Ball

Stainless Ball Steel Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

    Product Data

    • Thread Size (D) : M5 (5x0.8mm)
    • Body Length (L) 12.0 mm
      (Equiv. 0.472 in.)
    • Initial Pressure (F1) 4.00 N
    • Final Pressure (F2) 20.00 N
    • Ball Diameter (D1) 3.00 mm
    • Ball Height (H) 1.00 mm
    • 304 Stainless
    • Body Material Alloy Steel
    • Drive 2.5mm Hex
    • Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

    Cross References

    • Misumi C-BPW5-20P
    • CBPW520P
    View full details

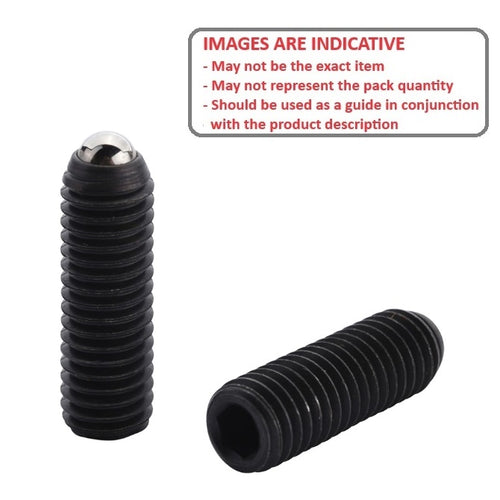

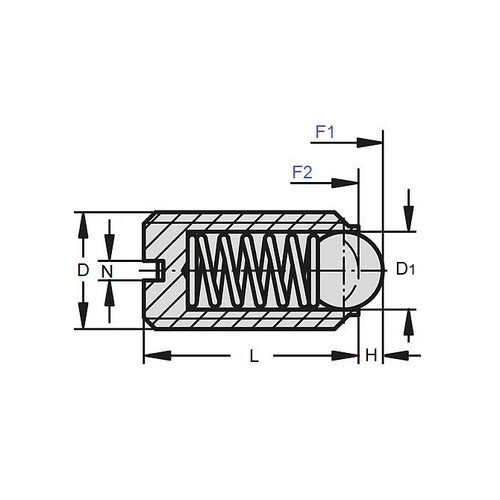

    PLBT-050M-120-CS-020DiagramPLBT-050M-120-CS-020Image
