IN-RIV-050M-033-R - Datasheet

MBA

Category Information

Inserts - Rivet Nuts - Klik - Ribbed

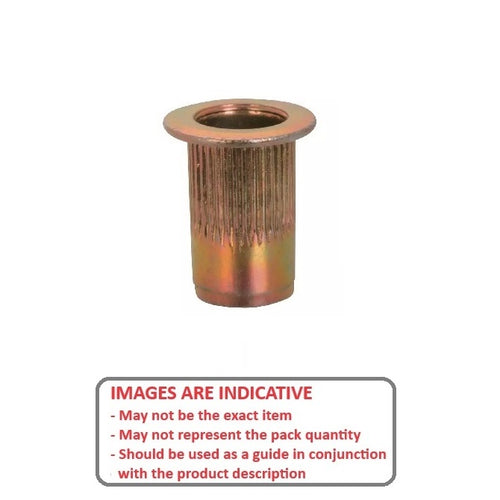

Ribbed Klik Rivet Nuts Inserts. Individual Inserts for use with the Klik Thread Setter Tool

  • One-piece, internally threaded fastener that creates a permanent, reusable thread in a material, from only one side.
  • Installed using a special tool that grips the insert and pulls a mandrel, which causes the nut's body to deform and grip the hole. This allows a bolt to be threaded into the insert to join components together.
  • Also known as a nutsert or rivnut.
  • These blind threaded inserts offer strong torque and pull out characteristics. Especially effective in sheet metal and other thin material.
  • Insert is placed into the hole in the parent material and crimped up with the installation tool.
  • Installs from one side - no tapping required. Installs almost flush eliminating the need for countersinking.
  • Made from plated steel.

Product Data

  • Internal Thread : M5 (5x0.8mm)
  • Drill Hole Size 7.6 mm
    (Equiv. 0.299 in.)
  • Grip Range 0.50 - 3.30 mm
    (Equiv. 0.02 in.)

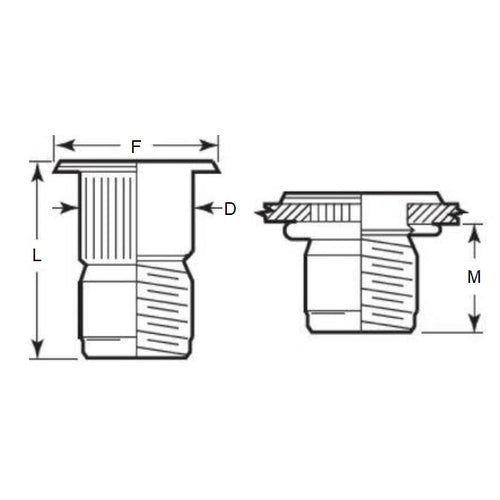

  • Body Diameter (D) 7.55 mm
  • Flange Diameter (F) 10.1 mm
  • L 12.300 mm
  • M 7.600 mm
  • 0.50 - 3.30
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • INRIV050033R
View full details
