Miniature Bearings Australia
SK040M-050-PZ-CZ - Datasheet
MBA
Category Information
Screws - Countersunk - Pozidrive - SteelSteel Pozidrive Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.

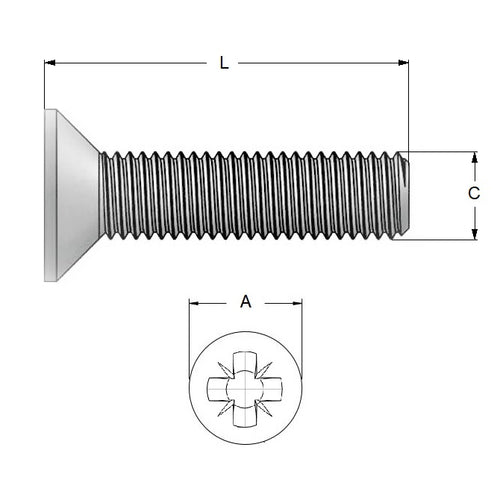

Product Data
- Thread Size (C) : M4 (4x0.7mm)
- Overall Length (L)
50
mm
(Equiv. 1.969 in.) - Material Zinc Plated Steel
- Max Head Diameter 8.0 mm
- Max Head Height 2.3 mm
- Type Countersunk / Pozidrive
- Pitch 0.700 mm
- Threads Per Inch 36.29 TPI
- Material Zinc Plated Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Hitech MSC-ZZP450
- MSCZZP450
