Miniature Bearings Australia
SK040M-030-SL-N - Datasheet
MBA
Category Information

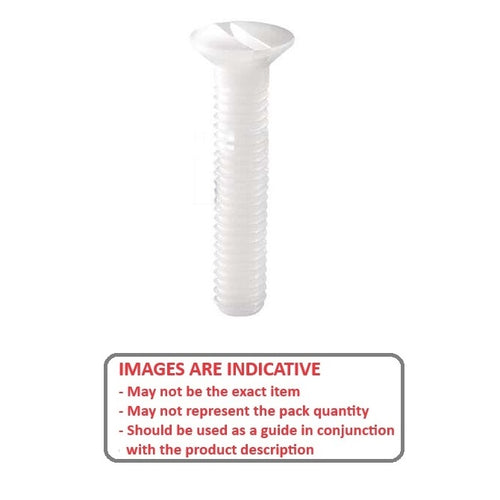

Screws - Countersunk - Slotted - NylonNylon Slotted Countersunk Screws. Flat Head Countersunk UNC and UNF.
- An expanded range may be available on special order. Please enquire.
- Non Conductive.
- Non Corrosive.
- Non Magnetic.
- Lightweight.
- Vibration Resistant.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : M4 (4x0.7mm)
- Overall Length (L)
30
mm
(Equiv. 1.181 in.) - Material Nylon
- Max Head Diameter 9.40 mm
- Max Head Height 2.70 mm
- Type Countersunk / Slotted
- Pitch 0.700 mm
- Threads Per Inch 36.29 TPI
- Material Nylon (Polyamide 6/6)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92929A258
- MicroFast NBFM4030
