NT040M-HX-HT - Datasheet
MBA
Category Information

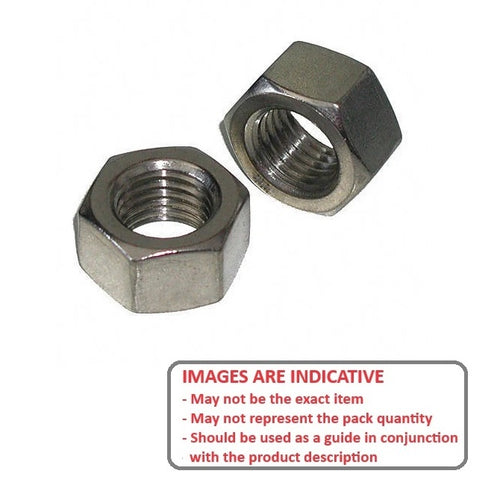

Nuts - Hexagonal - Full - SteelSteel Full Hexagonal Nuts. UNC - UNF - BA - METRIC. Plain and Zinc Plated.
- An expanded range may be available on special order. Please enquire.

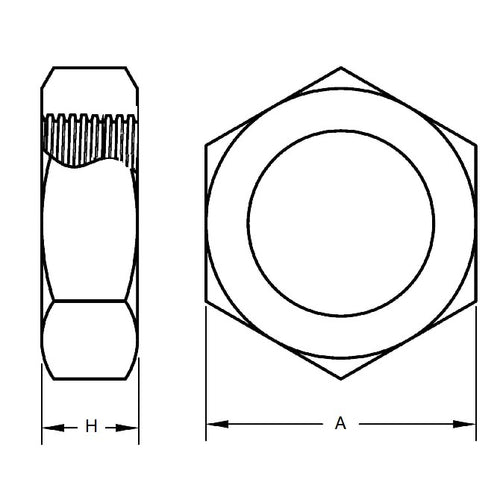

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : M4 (4x0.7mm)
- Thickness (H)
3.2
mm
(Equiv. 0.126 in.) - Across Flats (A/F)
7.00
mm
(Equiv. 0.276 in.) - Type Standard
- Pitch 0.700 mm
- Threads Per Inch 36.29 TPI
- Material High Tensile Steel
Product Compliance and Data
Additional Resources
Cross References
- N4
