NT040M-HX-BR - Datasheet
MBA
Category Information

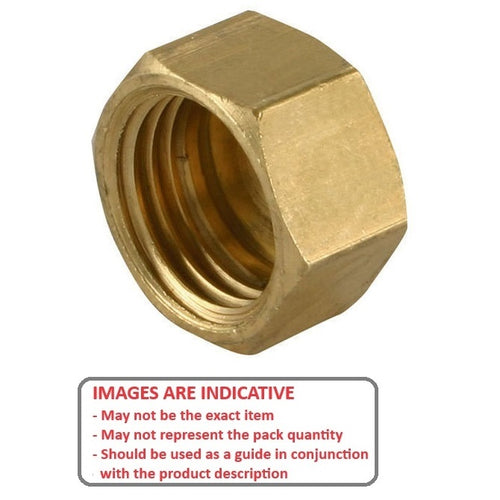

Nuts - Hexagonal - Full - BrassBrass Full Hexagonal Nuts. UNC - UNF - BA - METRIC.
- An expanded range may be available on special order. Please enquire.

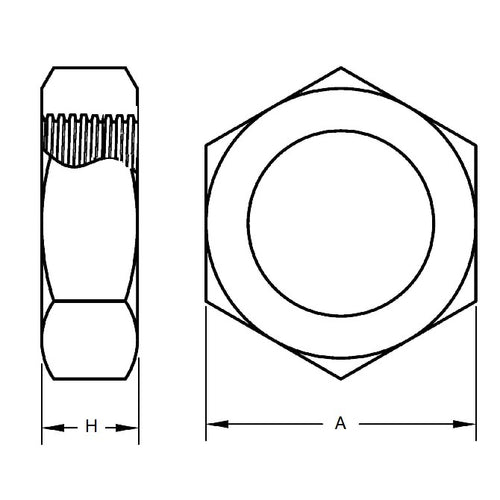

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
- Nuts marked as type SCALE have the same dimension across flats as the brass hex head screw of the same thread size.
Product Data
- Thread Size : M4 (4x0.7mm)
- Thickness (H)
3.2
mm
(Equiv. 0.126 in.) - Across Flats (A/F)
7.00
mm
(Equiv. 0.276 in.) - Type Standard
- Pitch 0.700 mm
- Threads Per Inch 36.29 TPI
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- 90690A044
- Hitech BRHNB4
- Hitech BRHP4
