NT040M-BL-CZ - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

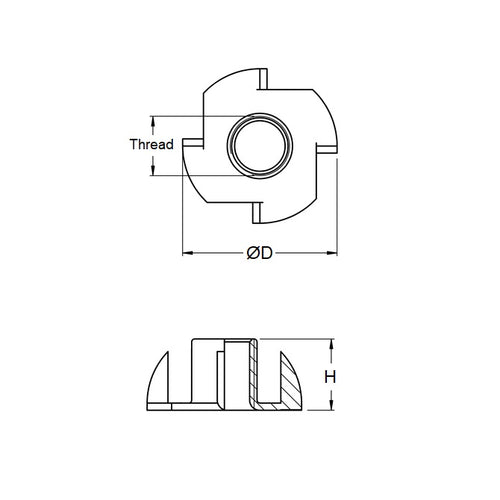

• Thread Size : M4 (4x0.7mm)
• Flange Diameter 18.3 mm
  (Equiv. 0.72 in.)
• Barrel Height 7.0 mm
  (Equiv. 0.276 in.)

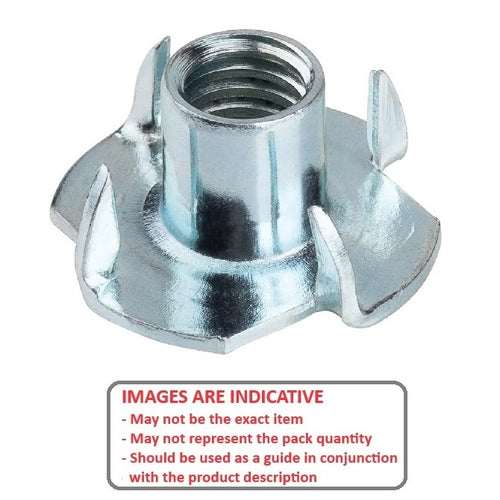

• Type Tee Nut
• Pitch 0.700 mm
• Threads Per Inch 36.28 TPI
• Material Steel Zinc Plated

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
