SK040M-016-PH-TC1 - Datasheet

MBA

Category Information

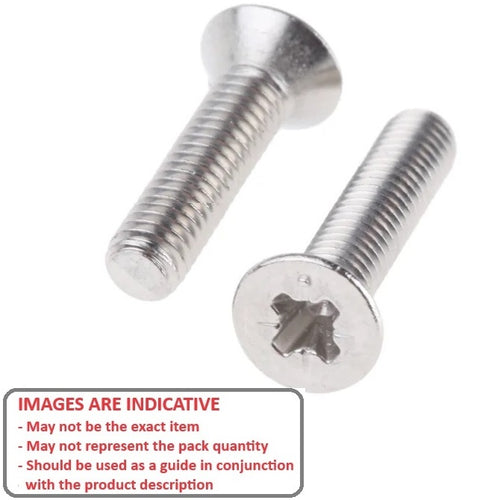

Screws - Countersunk - Phillips - Titanium CP Grade 1

Titanium CP Grade 1 Phillips Countersunk Screws. Flat Head Countersunk. Metric only. CP1 Commercially Pure Titanium Grade 1. Tensile Strength 24.6 kgf/mm². Yield Strength 17.6 kgf/mm². Elongation 24 Percent.

An expanded range may be available on special order. Please enquire.
Nuts sold seperately - See Nuts. Commercially pure for general industrial corrosion applications. UNS R50250.
Widely used in power generation, chemical processing, aerospace and medical applications.
Composition Percentage: Al 0, V 0, N 0.03, C 0.08, H 0.015, Fe 0.2, O 0.18, Ti Balance

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

Thread Size (C) : M4 (4x0.7mm)
Overall Length (L) 16 mm
(Equiv. 0.63 in.)
Material Titanium CP Grade 1
Max Head Diameter (A) 7.50 mm
Max Head Height 2.3 mm
Type Flat Countersunk / Philips
Pitch 0.700 mm
Threads Per Inch 36.29 TPI
Material Titanium - CP1 Commercially Pure

Country of Origin: US
