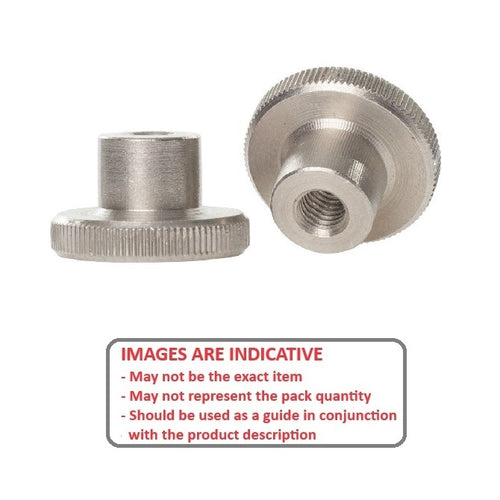

NT040M-TH1606-S3 - Datasheet

MBA

Product Data

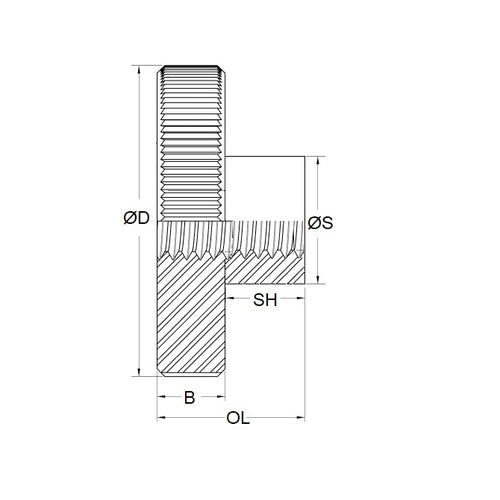

• Thread Size : M4 (4x0.7mm)
• Overall Length 12.5 mm
  (Equiv. 0.492 in.)
• Head Width (B) 6.54 mm
  (Equiv. 0.257 in.)
• Head Diameter 16.00 mm
• Shoulder Diameter 8.00 mm
• Shoulder Height 6.00 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
