SHX-TP-0400-07-016-S3 - Datasheet

MBA

Category Information

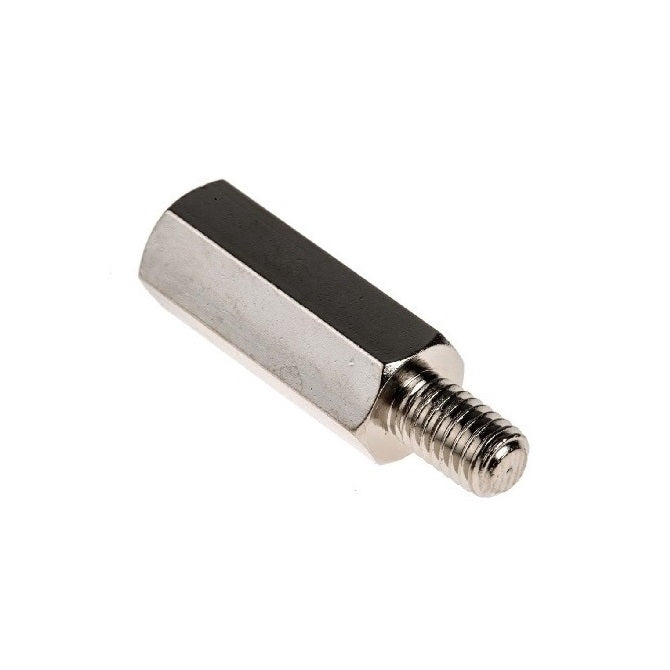

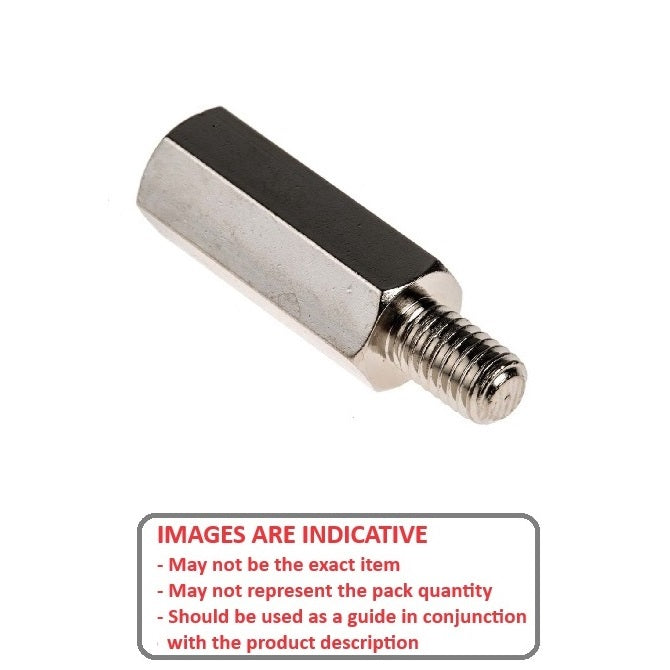

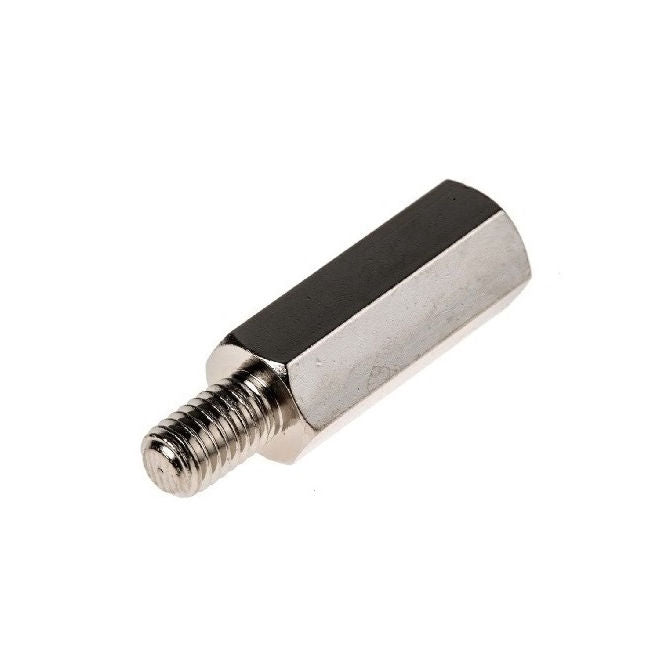

Pillars - Threaded

Threaded Pillars. Standoffs

  • Also know as stand offs

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Thread Size : M4 (4x0.7mm)
  • Stud Length (L3) 8.00 mm
    (Equiv. 0.315 in.)
  • Base Length (L1) 8.00 mm
    (Equiv. 0.315 in.)
  • Across Flats (A/F) 7.00 mm
  • Bore Thread Length (L2) 8.00 mm
  • Finish None
  • Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Country of Origin: DE

Product Compliance and Data

Additional Resources

    Cross References

    • MPS4-8
    • MPS48
