SHX-TP-0400-07-013-MZ - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

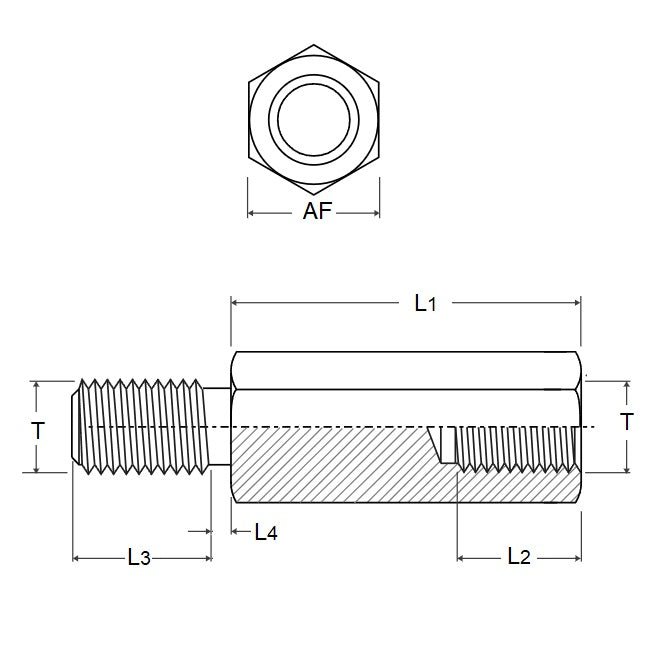

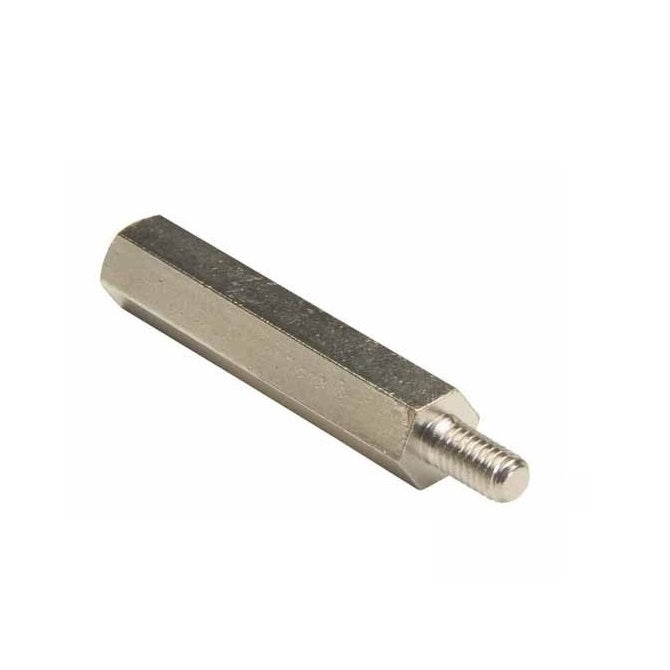

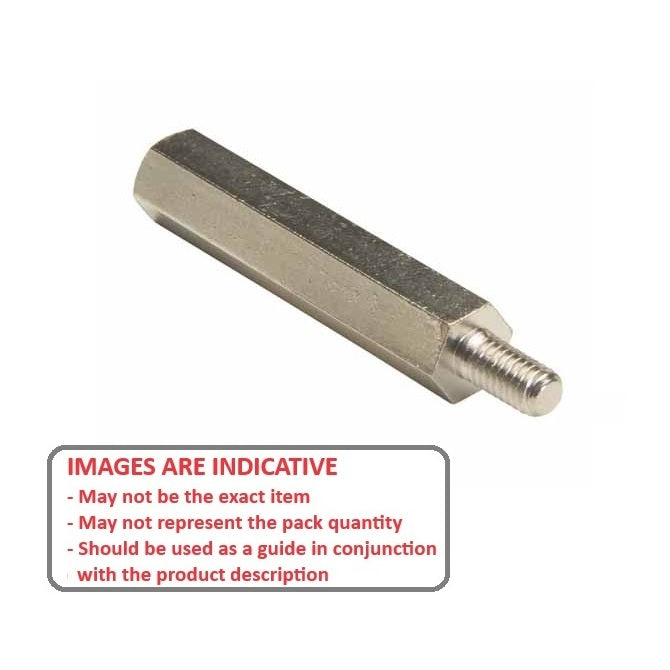

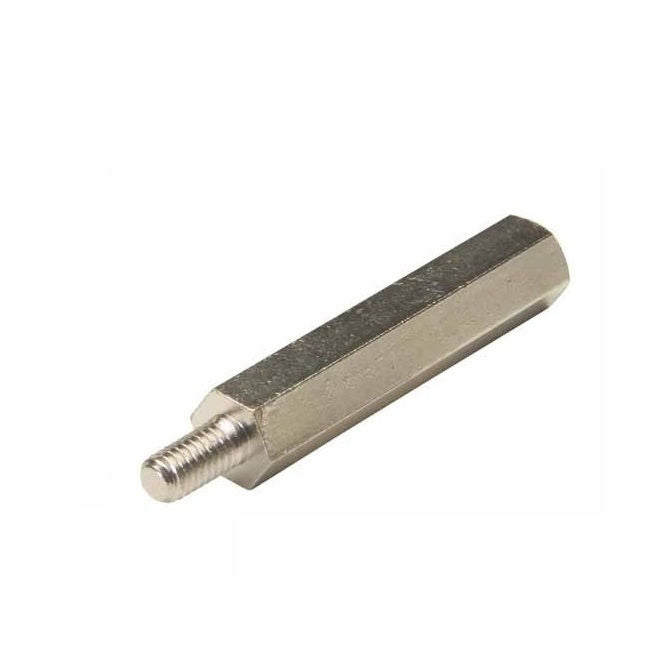

• Thread Size : M4 (4x0.7mm)
• Stud Length (L3) 8.00 mm
  (Equiv. 0.315 in.)
• Base Length (L1) 5.00 mm
  (Equiv. 0.197 in.)
• Across Flats (A/F) 7.00 mm
• Bore Thread Length (L2) 3.00 mm
• Unthreaded Length (L4) 1.20 mm
• Radius (R) 0.20 mm
• Finish Electro-Zinc Yellow
• Material Steel - Mild S300 Pb
