Category Information

Tools - Threading - Hand Taps - High Speed - Steel Individual

Steel Individual High Speed Hand Taps Threading Tools. High Speed Steel Short Machine Flute Taps. starting from M1 and 0-90 UNF. Many unusual sizes - M1.2, M1.4, M1.6, M1.7, BA Sizes, 2-56 and more. Sutton - PN - Bordo.

An expanded range may be available on special order. Please enquire.
High Speed Steel (HSS) Short Machine taps

Product Data

Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

Thread Size : M4.5 (4.5x0.75mm)
Pitch in mm / Threads Per Inch 0.750 mm / 33.87 TPI

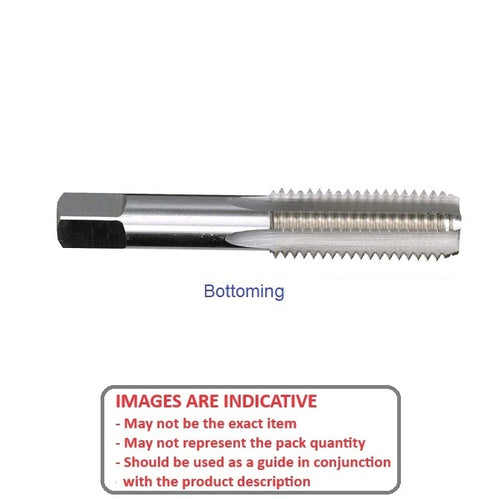

Type Bottoming
Drill Size Range 3.70 - 4.05 mm
mm 3.55
Material High Speed Carbon Steel

Country of Origin: TW

Product Compliance and Data

Additional Resources

Assortment Kits

Cross References

Sutton 027951
Bordo 3020-4.50B
8305A55
3020450B
