IN-EP-040M-L-070-B - Datasheet
MBA
Category Information

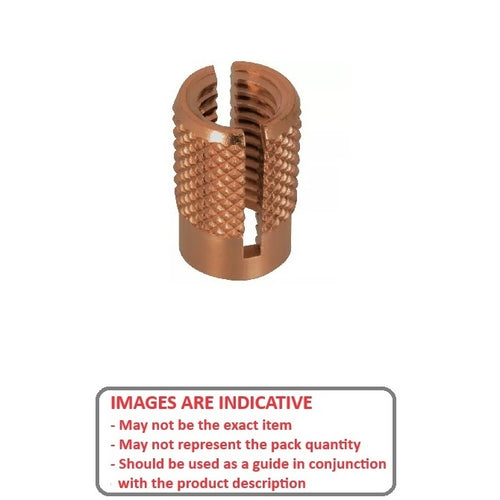

Inserts - Expansion - Press In - Brass - StandardStandard Brass Press In Expansion Inserts. Use for cored or drilled holes in plastics. Designed to replace molded in inserts and threads in plastic casings. Also known as threaded inserts.
- Material : Brass.
- Easiest inserts to install - simply push into a pre-moulded hole.
- Used with plastics or other materials. Material must be strong enough to withstand the expansion of the insert.
- The insertion of the screw locks the external knurls into the wall of the hole.
- Provides excellent thread durability. Not as strong as wind-in inserts.
Product Data

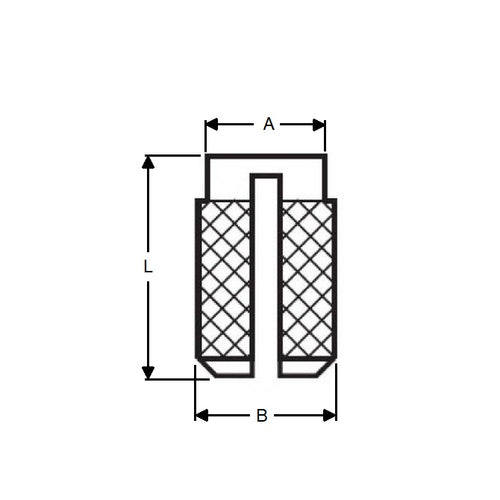

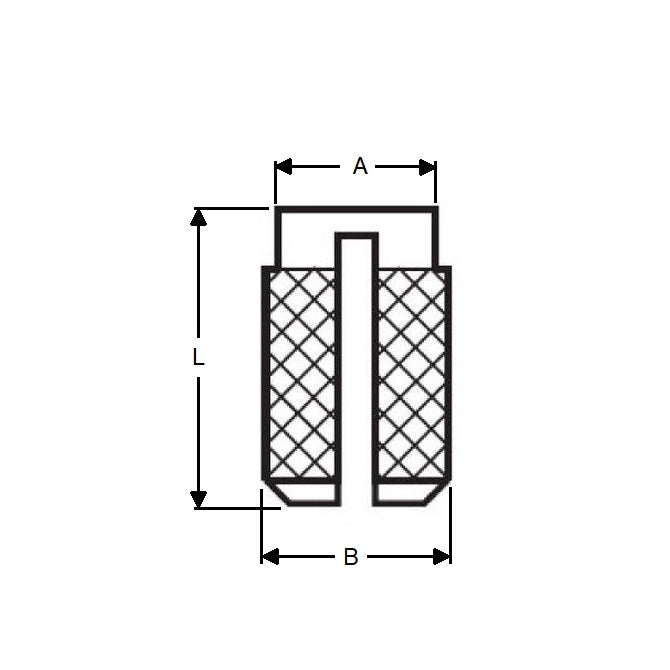

- Internal Thread : M4 (4x0.7mm)
- Rec. Hole Diameter
5.50
mm
(Equiv. 0.217 in.) - Length (L)
7.00
mm
(Equiv. 0.276 in.) - Knurled OD (B) 5.80 mm
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- SB4002
