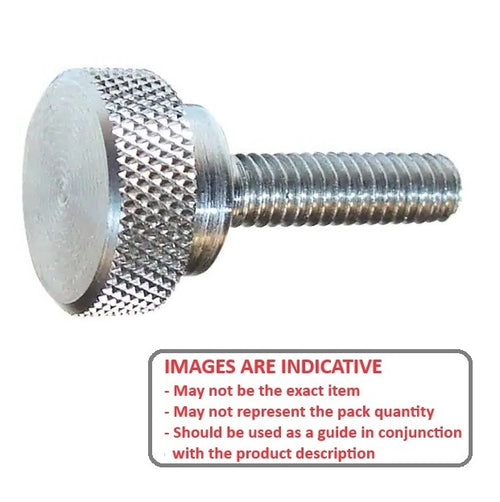

THS040M-020-K-3-SHL - Datasheet

MBA

Product Data

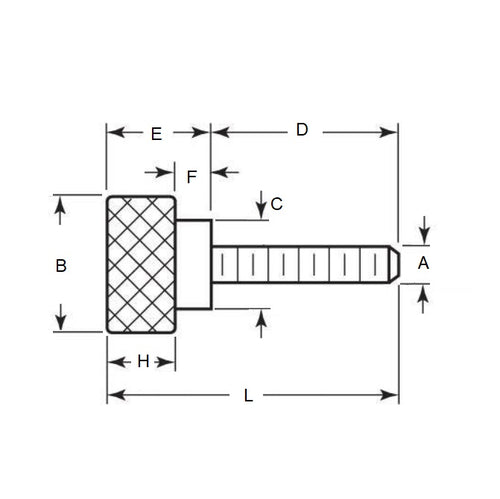

• Thread Size (A) : M4 (4x0.7mm)
• Thread Length (D) 20.00 mm
  (Equiv. 0.787 in.)
• Overall Length (L) 29.500 mm
  (Equiv. 1.161 in.)
• Head Diameter (B) 16.00 mm
• Shoulder Diameter (C) 8.00
• Shoulder Length (F) 6.00
• Head Height incl Shoulder (E) 9.50 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Thumb Screws and Nuts PDF Quick Guide

• PDF Screws Catalogue

• Nuts


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Misumi C-NKOS4-20
• CNKOS420
