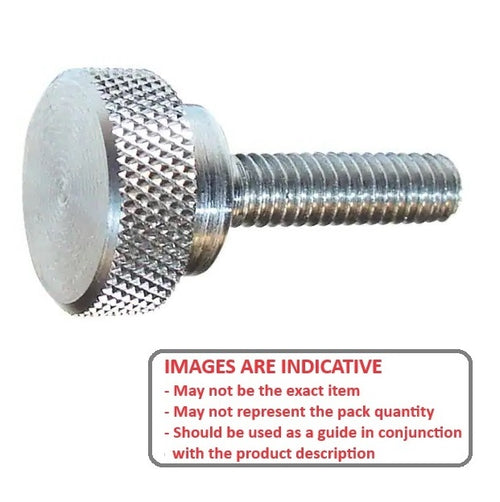

THS040M-010-K-3-SHL - Datasheet

MBA

Product Data

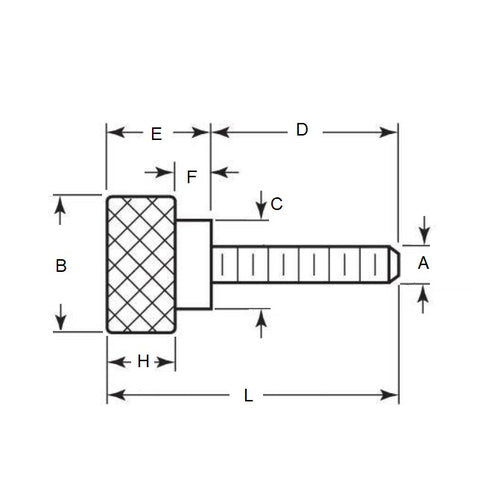

• Thread Size (A) : M4 (4x0.7mm)
• Thread Length (D) 10.00 mm
  (Equiv. 0.394 in.)
• Overall Length (L) 19.500 mm
  (Equiv. 0.768 in.)
• Head Diameter (B) 12.00 mm
• Shoulder Diameter (C) 8.00
• Shoulder Length (F) 6.00
• Head Height incl Shoulder (E) 9.50 mm
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
