Miniature Bearings Australia
PLBT-040M-100-CZ-005 - Datasheet
MBA
Category Information

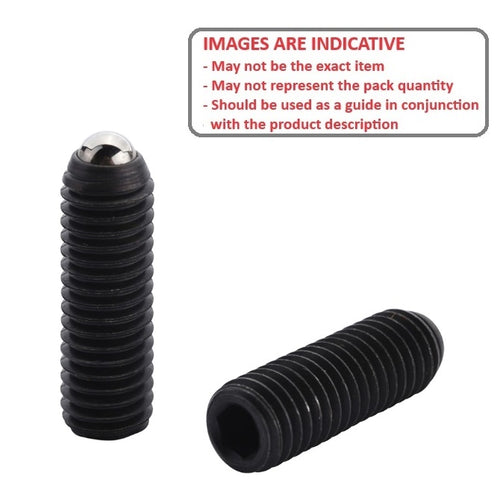

Plungers - Ball Threaded - Steel Body - Stainless BallStainless Ball Steel Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data

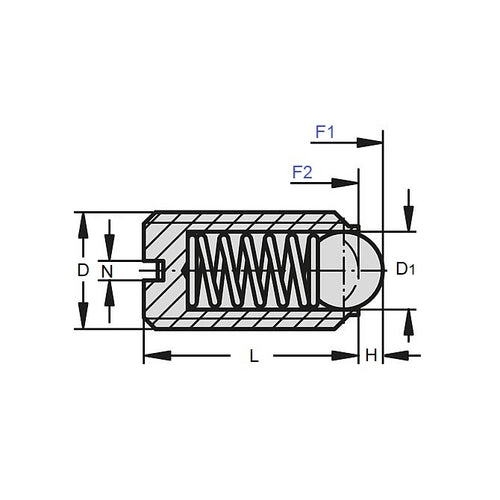

- Thread Size (D) : M4 (4x0.7mm)
- Body Length (L)
10.0
mm
(Equiv. 0.394 in.) - Initial Pressure (F1) 2.00 N
- Final Pressure (F2) 5.00 N
- Ball Diameter (D1) 2.38 mm
- Ball Height (H) 0.80 mm
- 304 Stainless
- Body Material Alloy Steel
- Finish Zinc Plated
- Drive 0.8mm Hex
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-BPU4-20P
- CBPU420P
