PLBT-040M-100-CS-005 - Datasheet

MBA

Category Information

Plungers - Ball Threaded - Steel Body - Stainless Ball

Stainless Ball Steel Body Ball Threaded Plungers. Items shown with Long-Lok have a dry threadlocking sealant applied to thread.

    Product Data

    • Thread Size (D) : M4 (4x0.7mm)
    • Body Length (L) 10.0 mm
      (Equiv. 0.394 in.)
    • Initial Pressure (F1) 2.00 N
    • Final Pressure (F2) 5.00 N
    • Ball Diameter (D1) 2.38 mm
    • Ball Height (H) 0.80 mm
    • 304 Stainless
    • Body Material Alloy Steel
    • Drive 2.0mm Hex
    • Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

    Cross References

    • Misumi C-BSJF4-20P
    • CBSJF420P
    View full details

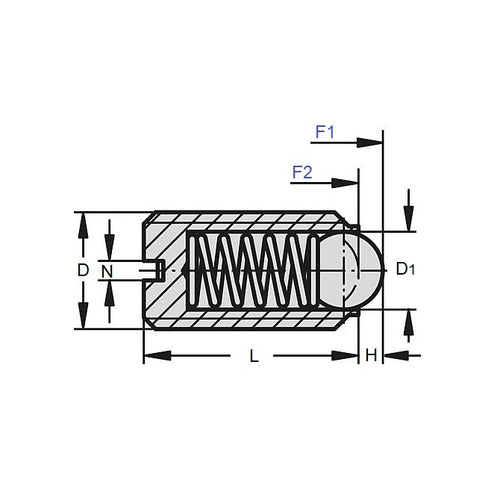

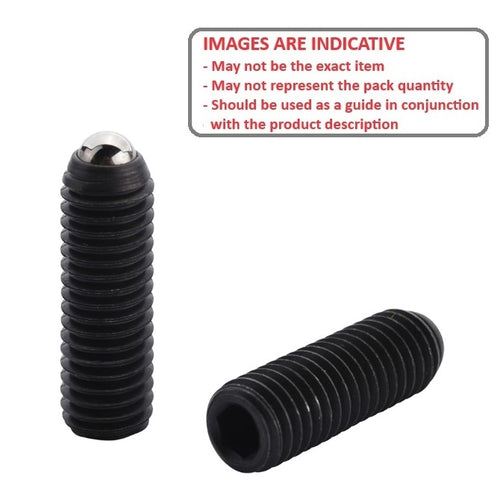

    PLBT-040M-100-CS-005DiagramPLBT-040M-100-CS-005Image
