PLBT-030M-070-S3LK-003 - Datasheet
MBA
Category Information

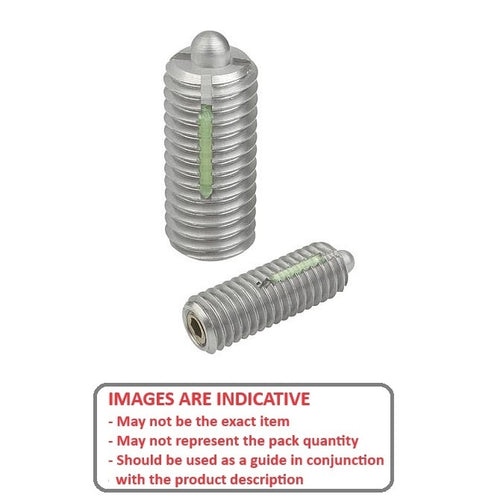

Plungers - Ball Threaded - Stainless Body and Ball with ThreadlockStainless Body and Ball with Threadlock Ball Threaded Plungers. With Long-Lok thread locking compound to prevent loosening
- Items shown with Long-Lok have a dry threadlocking sealant applied to thread.
Product Data
- Thread Size (D) : M3 (3x0.5mm)
- Body Length (L)
7.0
mm
(Equiv. 0.276 in.) - Initial Pressure (F1) 1.5 N
- Final Pressure (F2) 3.0 N
- Ball Diameter (D1) 1.5 mm
- Ball Height (H) 0.5 mm
- Drive 0.4mm Slotted Drive
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- BPM3SS-LOK
- BPM3SSLOK
- KBP-195
- KBP195
- PLBT030070S3LK003
