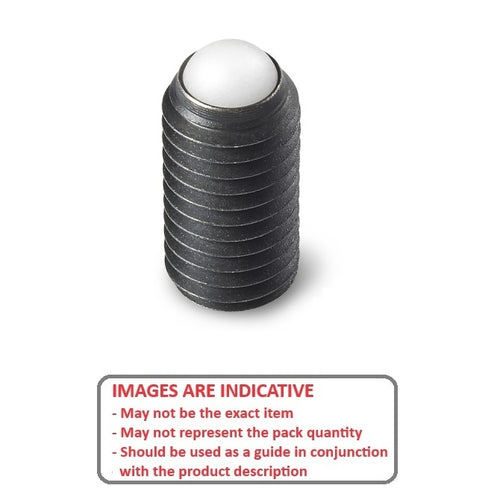

SS030M-0102-CS-PO-RB - Datasheet
MBA
Category Information
Socket Set Screws - Rolling Ball Tip - Carbon SteelCarbon Steel Rolling Ball Tip Socket Set Screws. Rolling ball tip for locating into a hole
- Rolling ball set screws are not designed to bear heavy loads.
- Used to lightly fasten fragile work pieces.
- We would recommend testing if you plan to use them in a load bearing application
- Ball materials include carbon steel, brass, Polyacetal or 440C Stainless Steel
Product Data
- Thread Size : M3 (3x0.5mm)
- Thread Length (L)
9.7
mm
(Equiv. 0.382 in.) - Type Rolling Ball Tip
- Overall Length (L) 10.2 mm
- Ball Diameter (D) 1.5 mm
- Hex Key Size 1.5
- Body Material Carbon Steel
- Ball Material Polyacetal
- Pitch 0.5 mm
- Threads Per Inch 50.8 TPI
- Finish Black Oxide
- Material Carbon Steel with Polyacetal tip
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi SCS-M3X10-N
- SCSM3X10N
