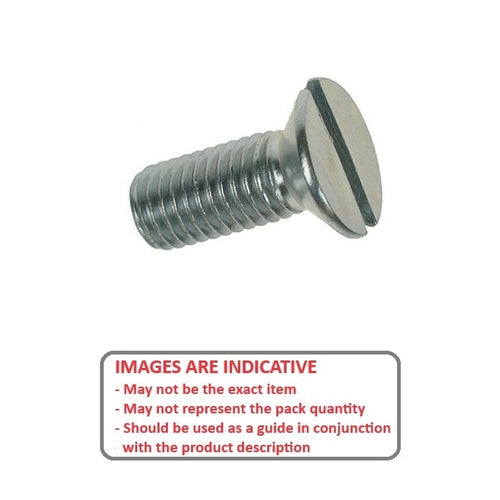

SK030M-008-SL-CZ - Datasheet
MBA
Category Information
Screws - Countersunk - Slotted - SteelSteel Slotted Countersunk Screws. Flat Head Countersunk UNC - UNF - BA - METRIC
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : M3 (3x0.5mm)
- Overall Length (L)
8
mm
(Equiv. 0.315 in.) - Material Zinc Plated
- Max Head Diameter 5.60 mm
- Max Head Height 1.7 mm
- Type Countersunk / Slotted
- Pitch 0.500 mm
- Threads Per Inch 50.8 TPI
- Material Steel Zinc Plated
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 90274A118
- Hitech MSCSZP38
