NT030M-TH1205-S3 - Datasheet

MBA

Category Information

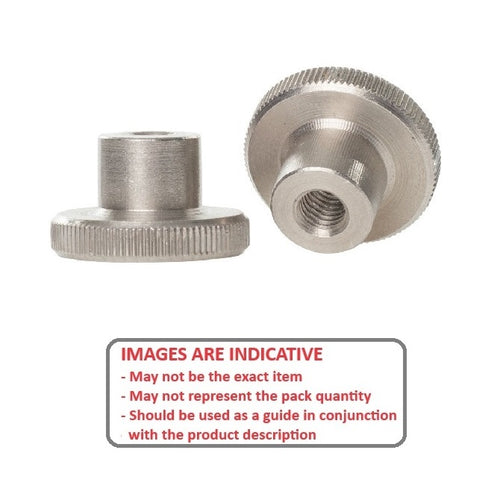

Nuts - Thumb - Basic

Basic Thumb Nuts. This is the main category in this series

    Product Data

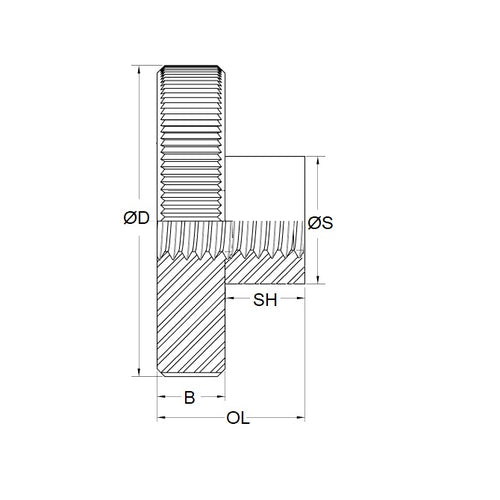

    • Thread Size : M3 (3x0.5mm)
    • Overall Length 7.5 mm
      (Equiv. 0.295 in.)
    • Head Width (B) 2.50 mm
      (Equiv. 0.098 in.)
    • Head Diameter 12.00 mm
    • Shoulder Diameter 6.00 mm
    • Shoulder Height 5.00 mm
    • Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • 90368A150
    • PTN36
    • PTN-36
