SS030M-0100-AS-FT - Datasheet
SSA
Category Information

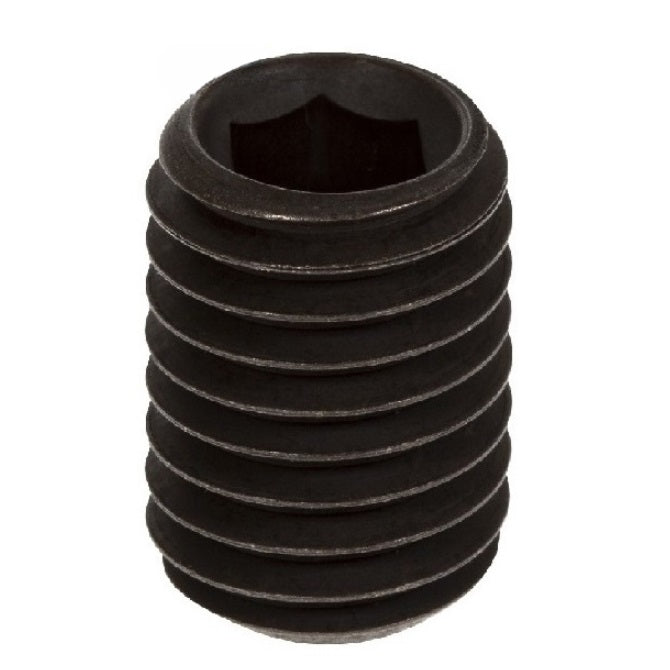

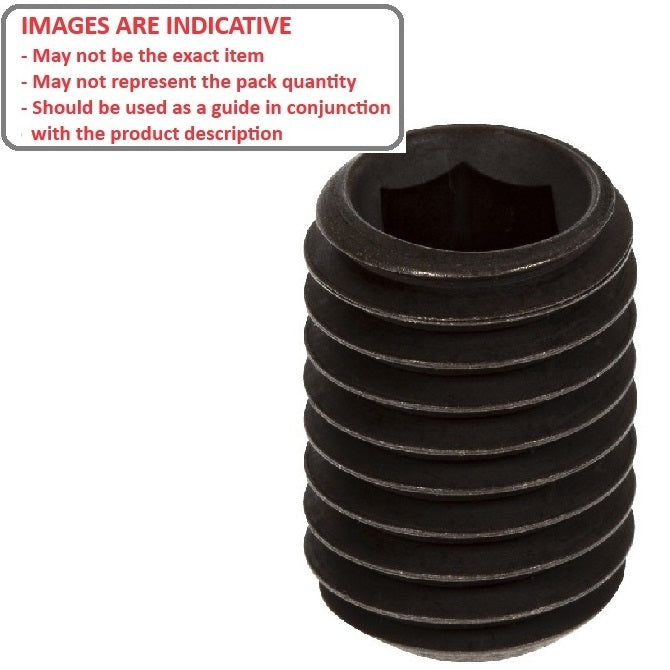

Socket Set Screws - Flat Tip DIN913 - Alloy SteelAlloy Steel Flat Tip DIN913 Socket Set Screws. Flat tip grub screws
- Socket driven grub screws with a solid flat tip.
Product Data

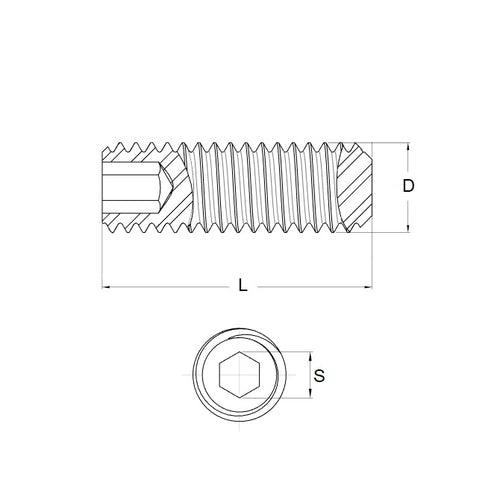

- Thread Size : M3 (3x0.5mm)
- Thread Length (L)
10.0
mm
(Equiv. 0.394 in.) - Type Flat Tip
- Hex Key Size 1.50
- Pitch 0.500 mm
- Threads Per Inch 50.8 TPI
- Finish Hardened, Black Oxide Coated
- Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 832008
- 93245A104
