SHX-TP-0300-05-020-BZ - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

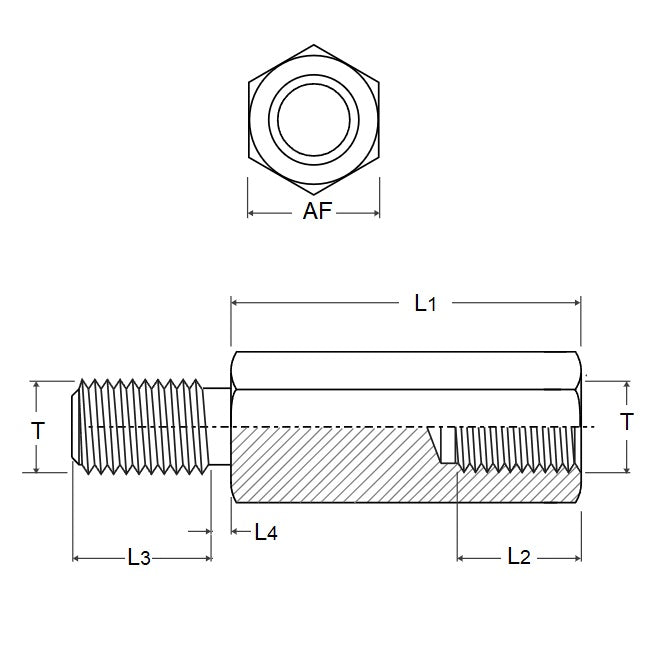

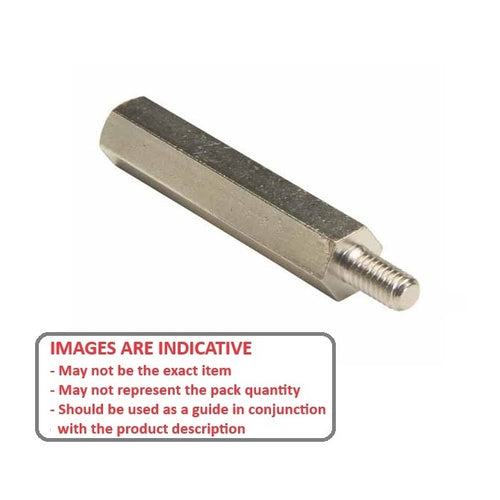

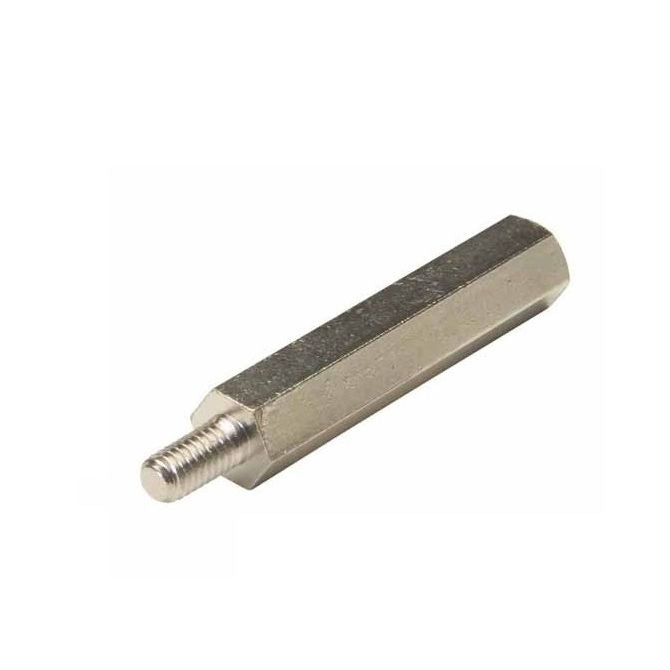

• Thread Size : M3 (3x0.5mm)
• Stud Length (L3) 8.00 mm
  (Equiv. 0.315 in.)
• Base Length (L1) 12.00 mm
  (Equiv. 0.472 in.)
• Across Flats (A/F) 5.00 mm
• Bore Thread Length (L2) 8.00 mm
• Unthreaded Length (L4) 0.90 mm
• Radius (R) 0.10 mm
• Finish Electro-Silver Finish
• Material Brass

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
