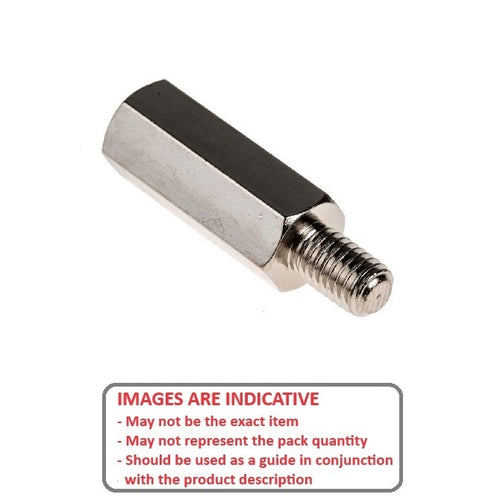

SHX-TP-0300-06-018-S3 - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

• Thread Size : M3 (3x0.5mm)
• Stud Length (L3) 8.00 mm
  (Equiv. 0.315 in.)
• Base Length (L1) 10.00 mm
  (Equiv. 0.394 in.)
• Across Flats (A/F) 5.50 mm
• Bore Thread Length (L2) 5.00 mm
• Finish None
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• MPS310
• MPS3-10
