Category Information

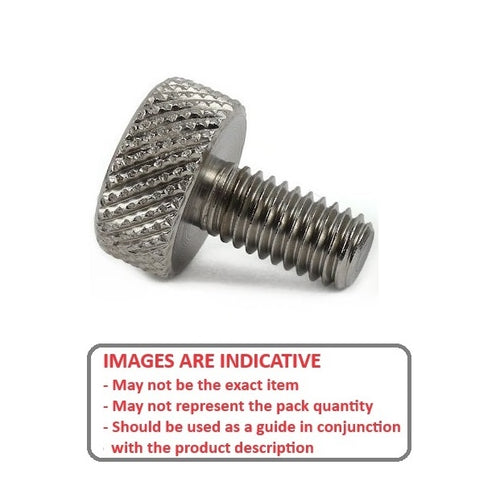

Screws - Thumb - Knurled - Stainless - StandardStandard Stainless Knurled Thumb Screws. Stainless steel knurled head thumb screws
- An expanded range may be available on special order. Please enquire.
Product Data

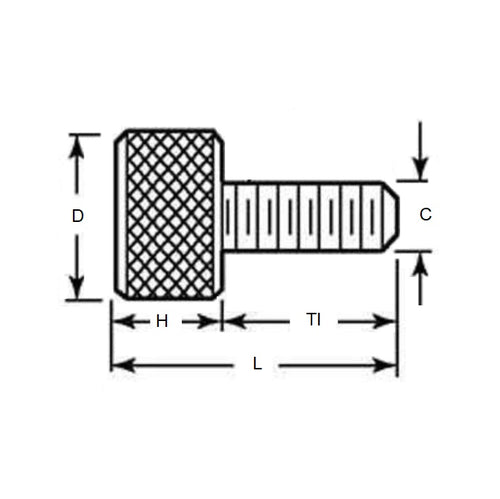

- Thread Size (C) : M3.5 (3.5x0.6mm)
- Thread Length (Tl)
8.00
mm
(Equiv. 0.315 in.) - Overall Length (L)
13.00
mm
(Equiv. 0.512 in.) - Head Diameter (D) 8.00 mm
- Head Height (H) 5.00 mm
- Finish Plain
- Material Stainless Steel
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- 92545A127
- AJ-615
- AJ615
