NT035M-BL-CZ - Datasheet
MBA
Category Information

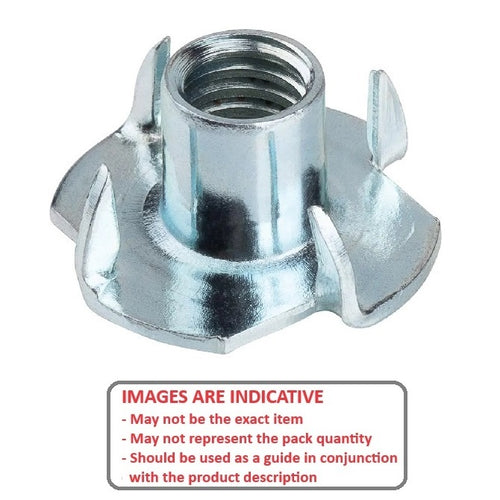

Nuts - Blind - StandardStandard Blind Nuts. Blind nuts - Tee nuts.
- Put steel threads in soft materials like wood without counterboring.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

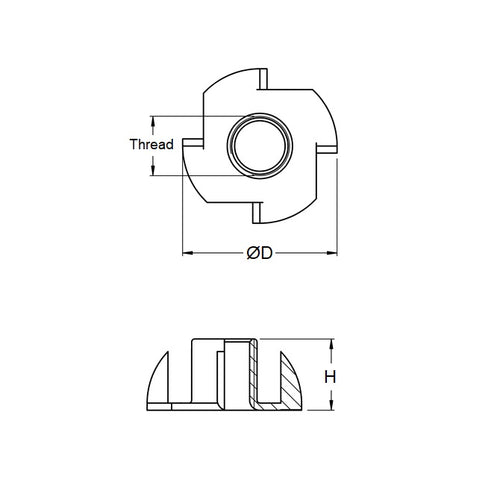

- Thread Size : M3.5 (3.5x0.6mm)
- Flange Diameter
7
mm
(Equiv. 0.276 in.) - Barrel Height
4.9
mm
(Equiv. 0.193 in.) - Type Square
- Pitch 0.600 mm
- Threads Per Inch 42.3 TPI
- Material Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- MicroFast BNM35
