THS030M-016-K-3-SHL - Datasheet
MBA
Category Information

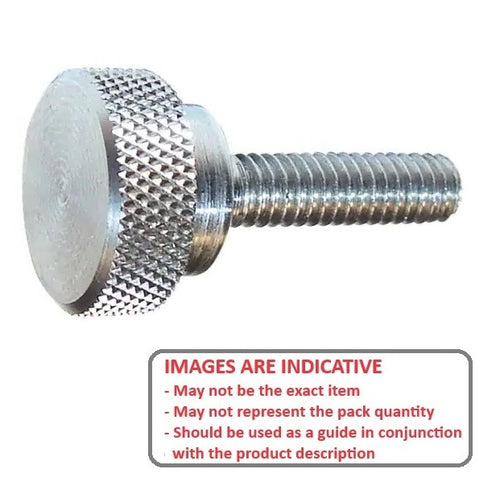

Screws - Thumb - ShoulderShoulder Thumb Screws. 303 Stainless Steel
- An expanded range may be available on special order. Please enquire.
Product Data

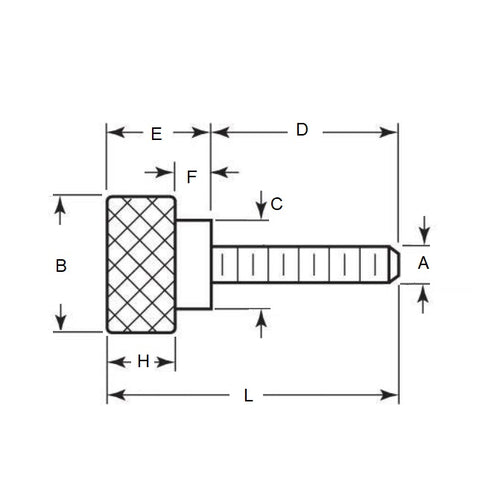

- Thread Size (A) : M3 (3x0.5mm)
- Thread Length (D)
16.00
mm
(Equiv. 0.63 in.) - Overall Length (L)
23.500
mm
(Equiv. 0.925 in.) - Head Diameter (B) 12.00 mm
- Head Height incl Shoulder (E) 7.50 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi C-NKOS3-16
- CNKOS316
