SK020M-012-PH-S6 - Datasheet
Brighton Best
Category Information
Screws - Countersunk - Phillips - 316 Stainless316 Stainless Phillips Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data

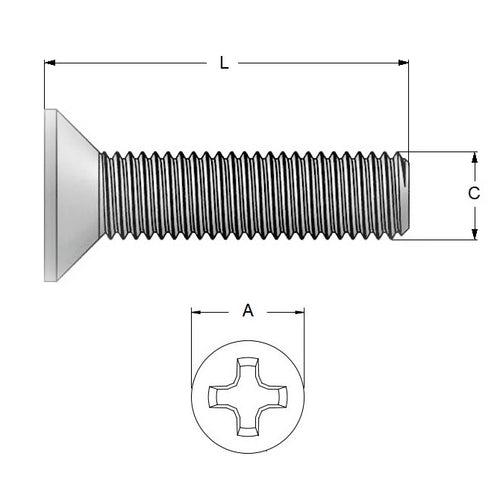

- Thread Size (C) : M2 (2x0.4mm)
- Overall Length (L)
12
mm
(Equiv. 0.472 in.) - Material 316 Stainless
- Max Head Diameter (A) 3.80 mm
- Max Head Height 1.20 mm
- Type Countersunk / Philips
- Pitch 0.400 mm
- Threads Per Inch 63.5 TPI
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 680007
- 91801A520
