Category Information

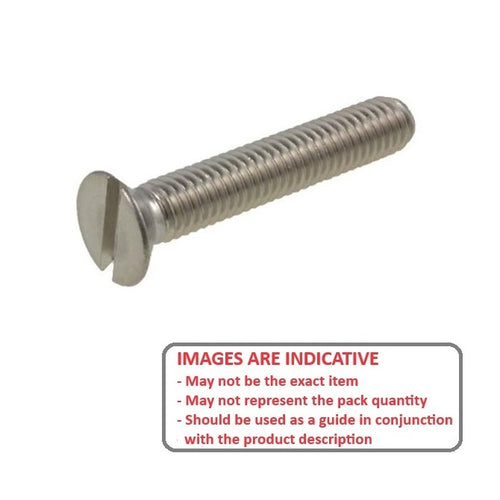

Screws - Countersunk - Slotted - 304 Stainless304 Stainless Slotted Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size (C) : M2 (2x0.4mm)
- Overall Length (L)
12
mm
(Equiv. 0.472 in.) - Material 304 Stainless
- Max Head Diameter (A) 3.80 mm
- Max Head Height 1.20 mm
- Type Countersunk / Slotted
- Pitch 0.400 mm
- Threads Per Inch 63.5 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
