SC220M-105-C-SK-4 - Datasheet
MBA
Category Information

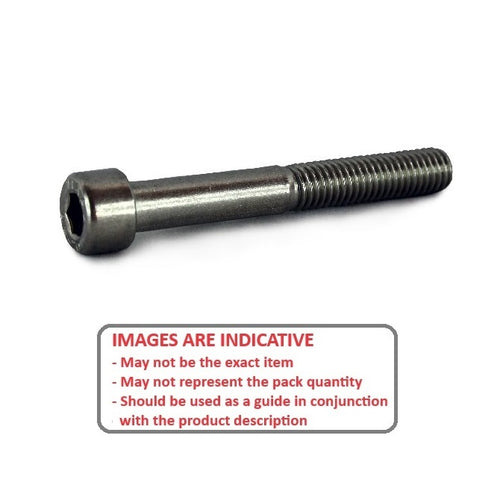

Screws - Socket Cap - Stainless - 303-304303-304 Stainless Socket Cap Screws. UNC - UNF - METRIC - Stainless Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data

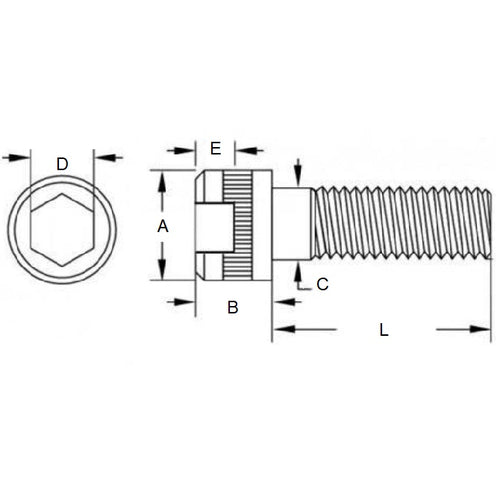

- Thread Size (C) : M22 (22x2.5mm)
- Thread Length (L)
105
mm
(Equiv. 4.134 in.) - Material 304 Stainless
- Head Length (B Max.) 22 mm
- Head Diameter (A Max.) 33.0 mm
- Drive Depth (E) 10.00 mm
- Shank Diameter (C) 21.00 - 22.00 mm
- Hex Key (D) 17.00 mm
- Pitch 2.50 mm
- Threads Per Inch 10.160 TPI
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi CSH-SUS-M22-105
- CSHSUSM22105
