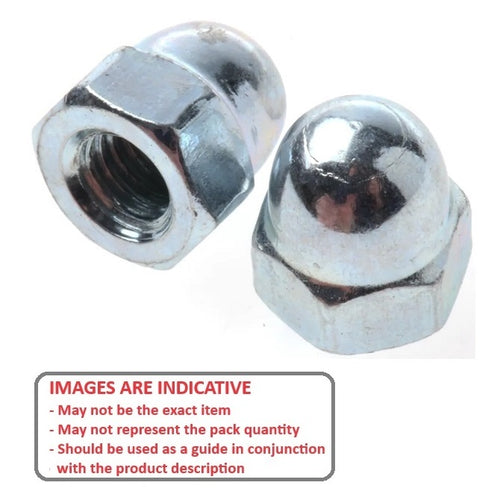

NT200M-DM-CC - Datasheet

MBA

Product Data

• Thread Size : M20 (20x2.5mm)
• Material Steel - Chrome Plated

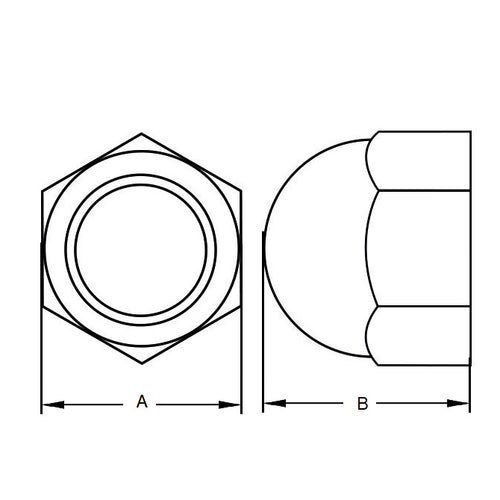

• Height (B) 34 mm
  (Equiv. 1.339 in.)
• Across Flats (A) 30
• Pitch 2.500 mm
• Threads Per Inch 10.16 TPI
• Material Steel - Chrome Plated

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Countersunk Head Screws

• Pan Head Screws

• Screws


• Measuring Small Parts
• Metalworking Resource Guide

• Metric Wingnut Dimensions
• Screws & Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Hitech MSDNCP20
