SC200MEF-050-C-SK-C - Datasheet
Brighton Best
Category Information

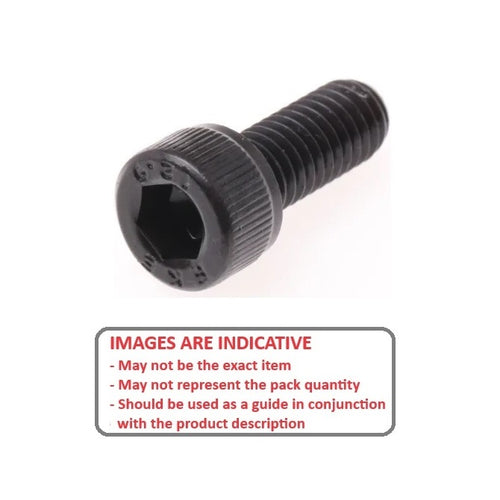

Screws - Socket Cap - Alloy Steel - Black OxideBlack Oxide Alloy Steel Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data

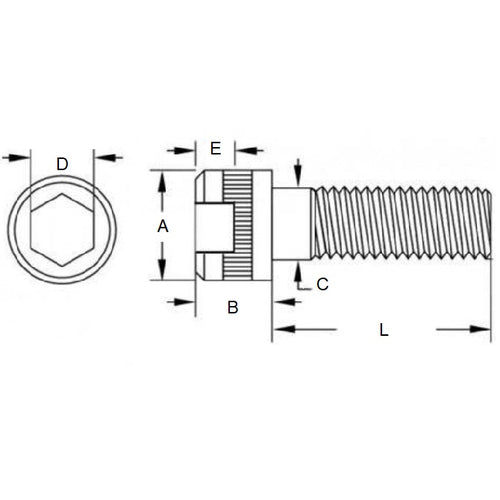

- Thread Size (C) : M20 Extra Fine (20x1.5mm)
- Thread Length (L)
50
mm
(Equiv. 1.969 in.) - Material High Tensile Steel / Black Oxide
- Head Length (B Max.) 20.0 mm
- Head Diameter (A Max.) 30.0 mm
- Drive Depth (E) 10.00 mm
- Shank Diameter (C) 19.67 - 20.00 mm
- Hex Key (D) 17.00 mm
- Pitch 1.500 mm
- Threads Per Inch 16.93 TPI
- Min thread Length 50 mm
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 532833
- 96144A343
