SC200MF-180-C-SK-BO - Datasheet
MBA
Category Information

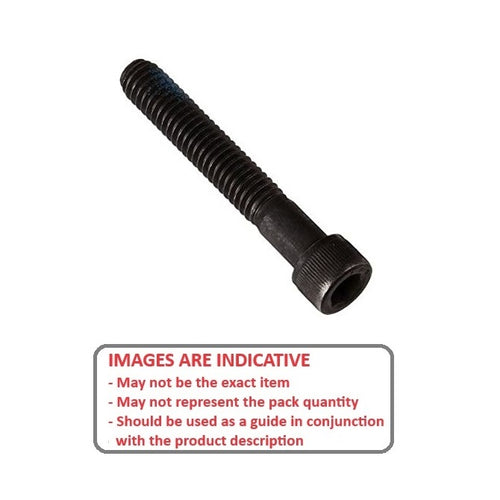

Screws - Socket Cap - Alloy Steel - Black OxideBlack Oxide Alloy Steel Socket Cap Screws. UNC - UNF - METRIC - Alloy Steel.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN912.
Product Data

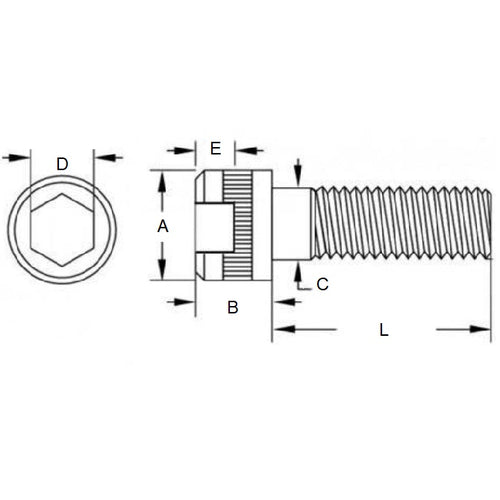

- Thread Size (C) : M20 Extra Fine (20x1.5mm)
- Thread Length (L)
180
mm
(Equiv. 7.087 in.) - Material Black Oxide Carbon Steel 10.9
- Head Length (B Max.) 20 mm
- Head Diameter (A Max.) 30 mm
- Drive Depth (E) 10 mm
- Shank Diameter (C) 19.67 - 20.00 mm
- Hex Key (D) 17.00 mm
- Pitch 1.50 mm
- Threads Per Inch 16.930 TPI
- Min thread Length 52.00 mm
- Material High Tensile Steel Black Oxide
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Misumi CSHHA-ST-M20-180
- CSHHASTM20180
